Connectors C100 To C400: C207

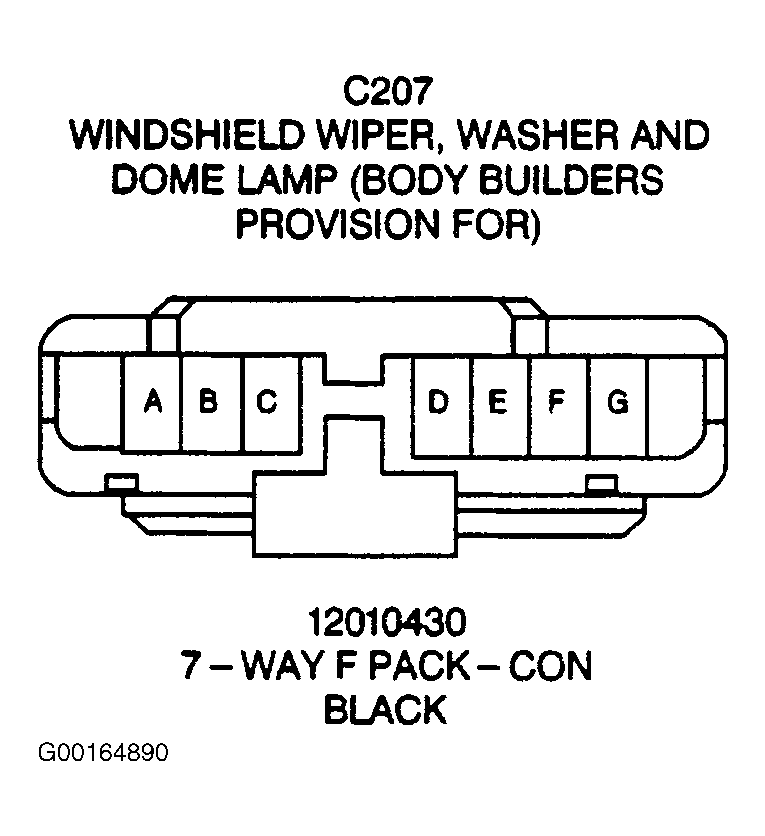

Fig 1: C207 - 7-Pin Connector, Black
G00164890Courtesy of GENERAL MOTORS CORP.

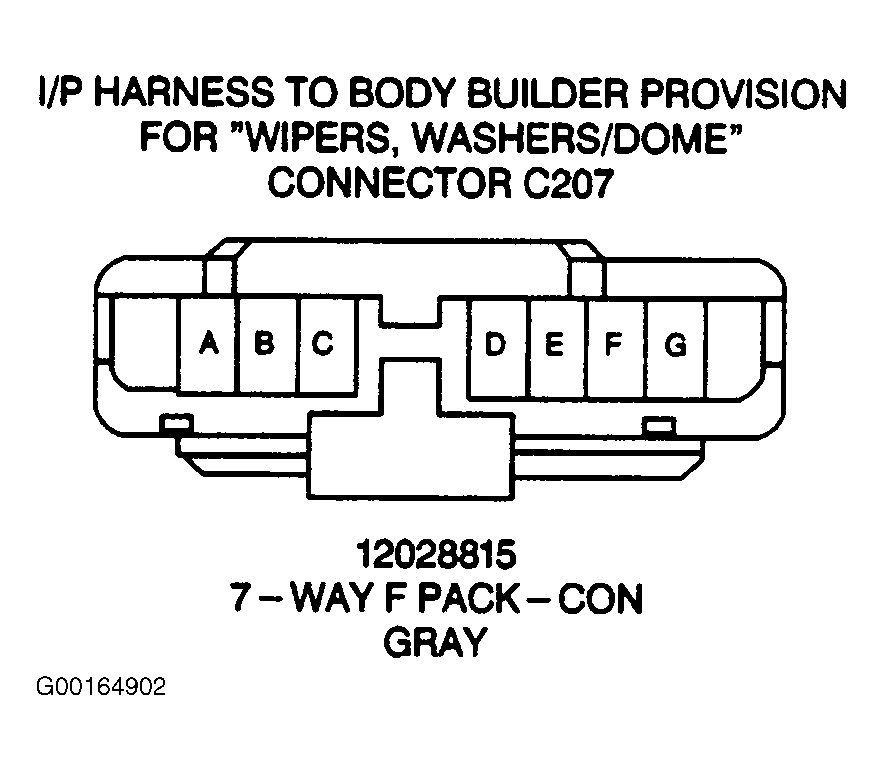

Fig 2: C207 - 7-Pin Connector, Gray
G00164902Courtesy of GENERAL MOTORS CORP.
