Connector Terminal Identification (P Series)
›
Data Link Connectors
›
Data Link (Commercial Chassis - Gas)
Data Link (Commercial Chassis - Gas)

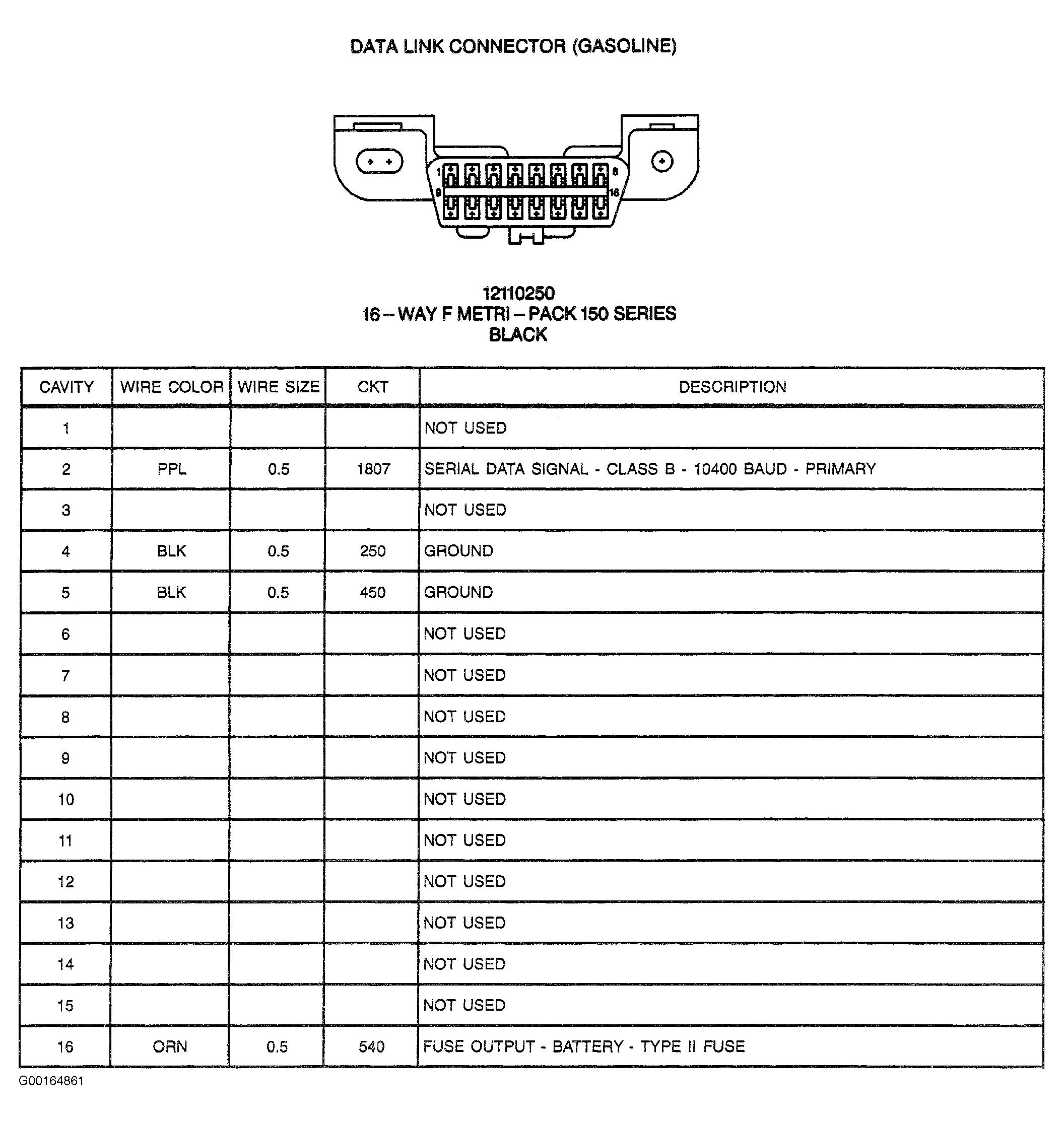

Fig 1: Data Link (Commercial Chassis - Gas) - 16-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
