Connector Terminal Identification (P Series)
›
Electronic Brake Control Module Connectors
›
Electronic Brake Control Module C3 (Commercial Chassis)
Electronic Brake Control Module C3 (Commercial Chassis)

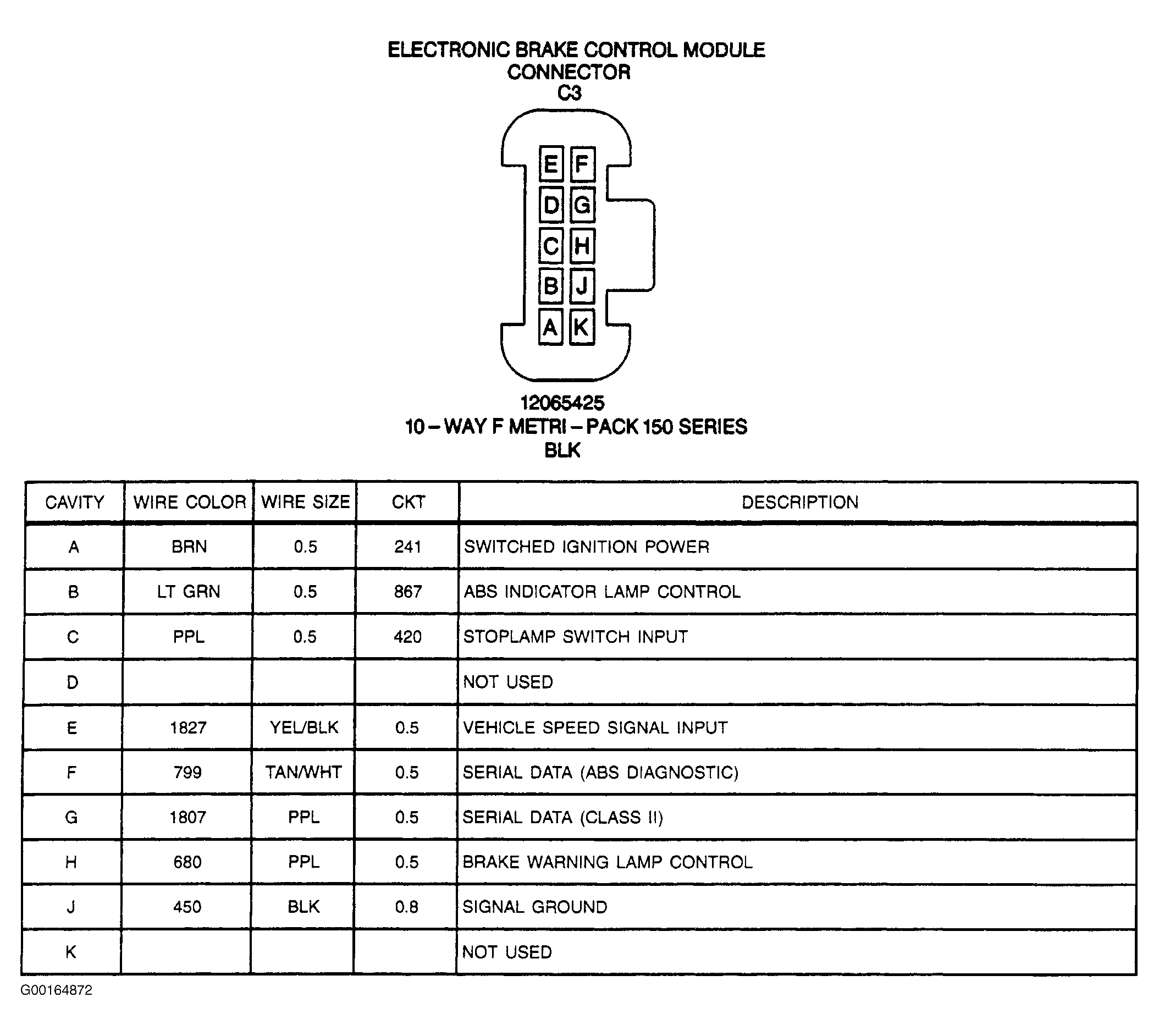

Fig 1: Electronic Brake Control Module C3 (Commercial Chassis) - 10-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
