Transmission Control Module (TCM) C2 Diesel

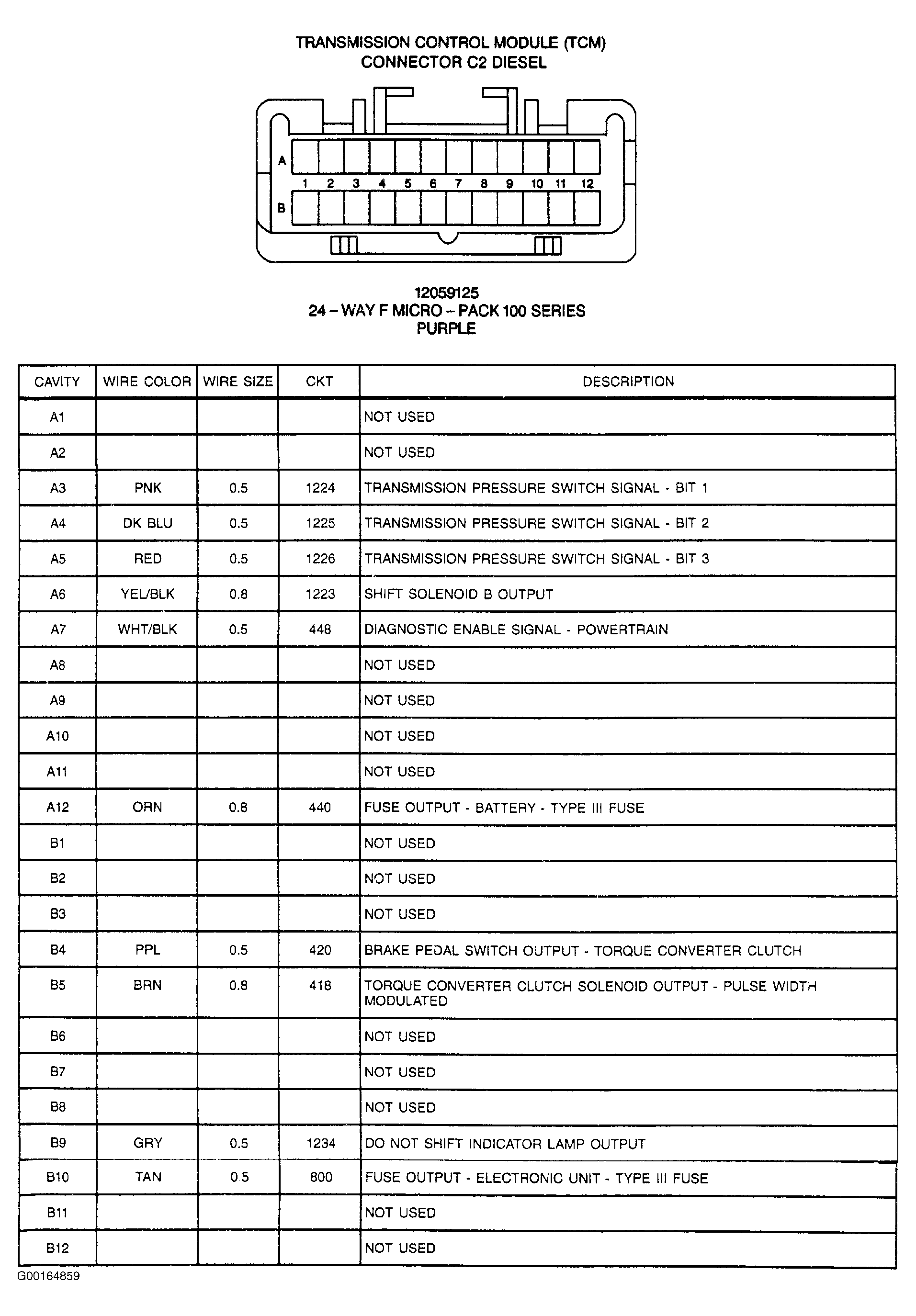

Fig 1: Transmission Control Module (TCM) C2 Diesel - 24-Pin Connector, Purple
G00164859Courtesy of GENERAL MOTORS CORP.
