Component Locations

Fig 1: Component Locations (VIN J)
G95J35559Courtesy of GENERAL MOTORS CORP.

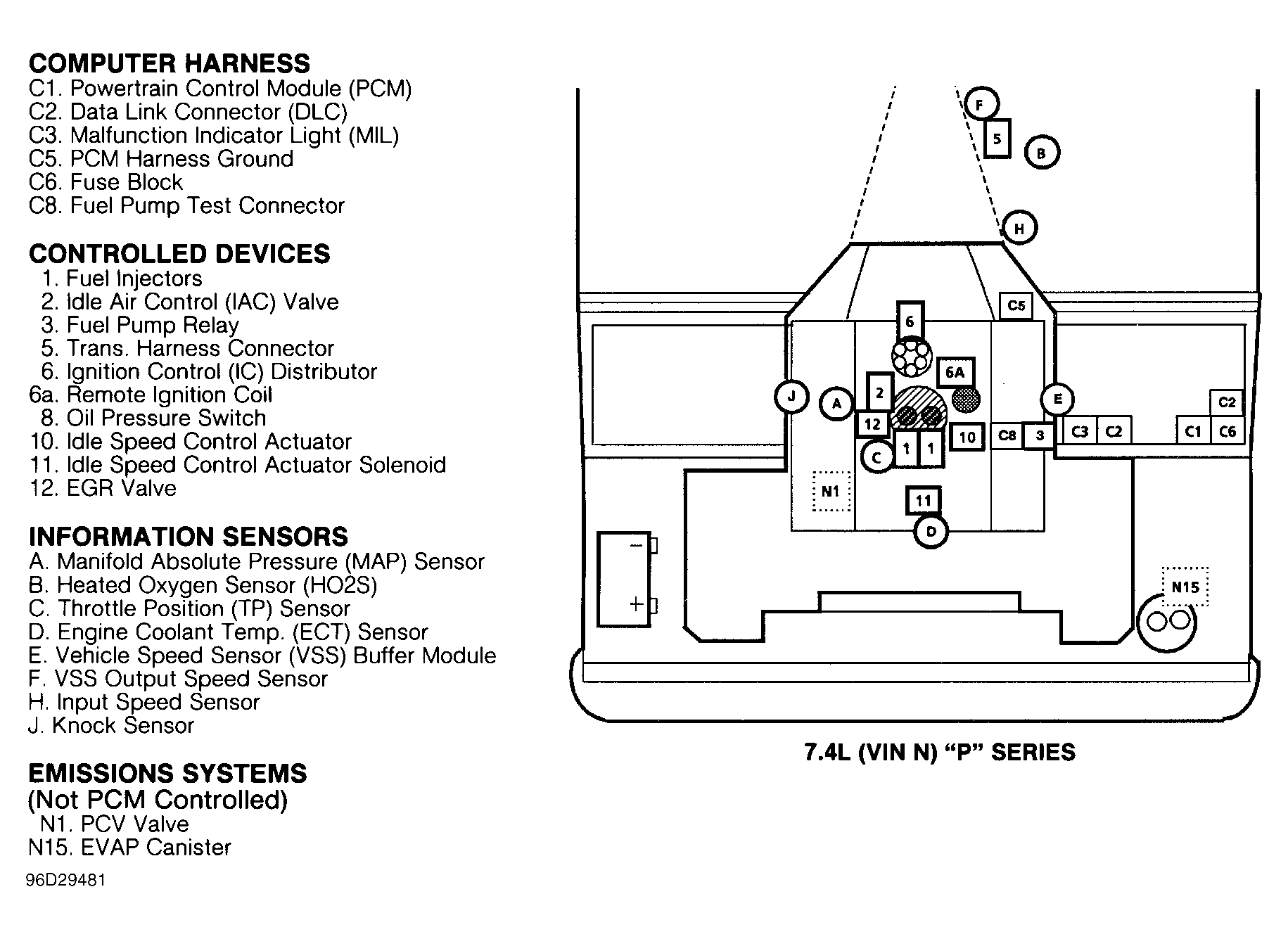

Fig 2: Component Locations (VIN N)
G96D29481Courtesy of GENERAL MOTORS CORP.
