Connector Terminal Identification
›
Radio Connectors
›
Radio C4
Radio C4

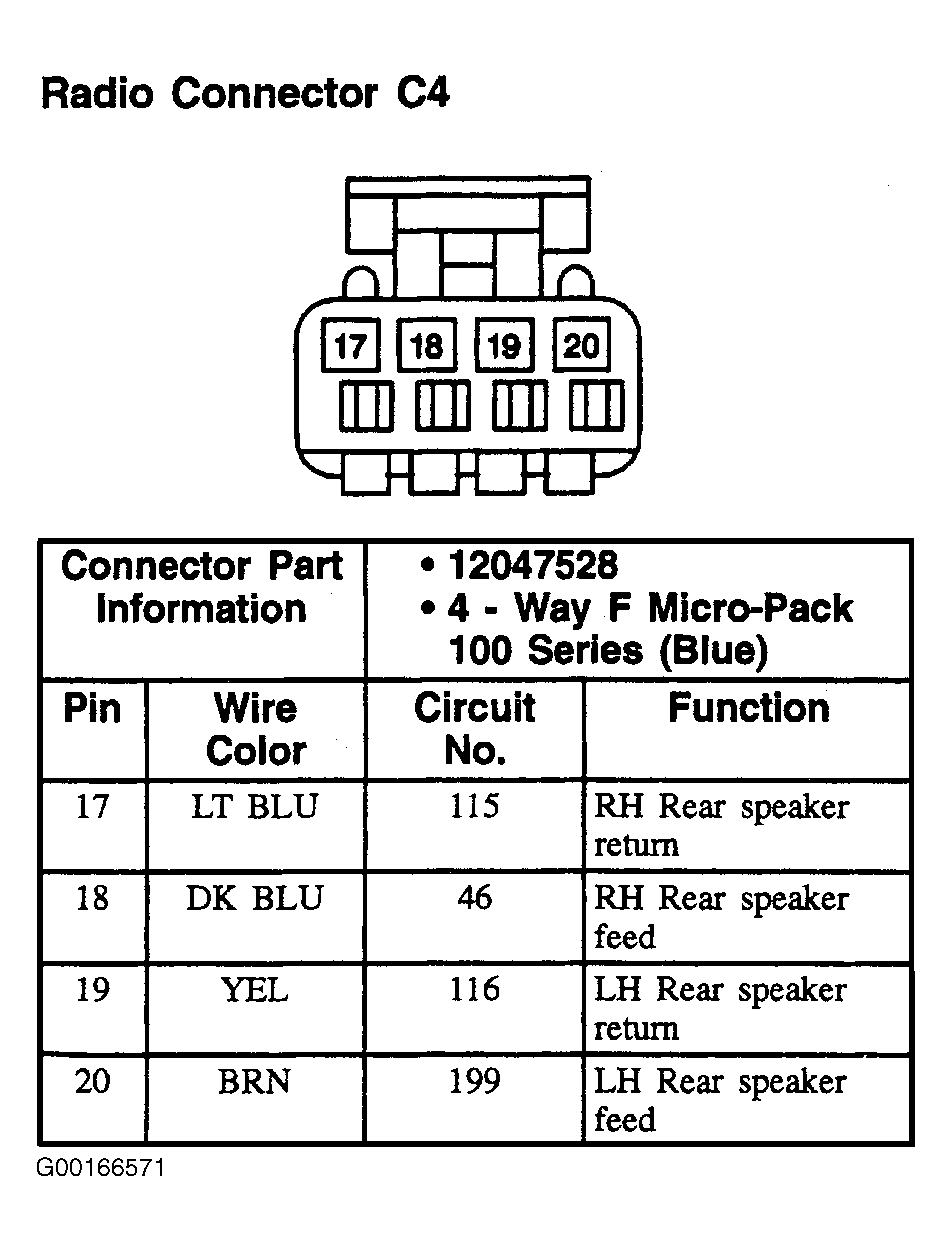

Fig 1: Radio C4 - 8-Pin Connector, Blue
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
