A/C Refrigerant Pressure Sensor (2.2L)

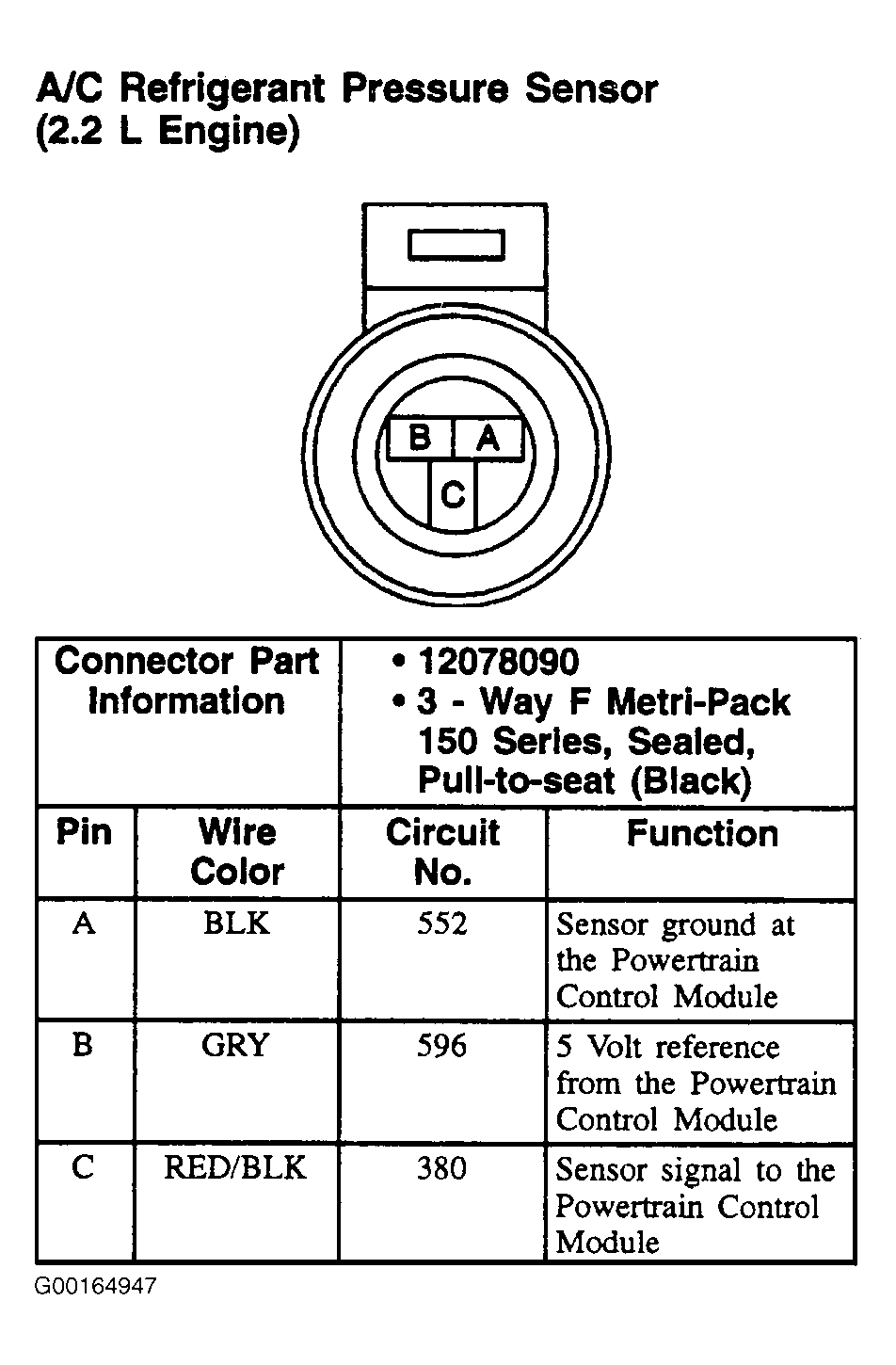

Fig 1: A/C Refrigerant Pressure Sensor (2.2L) - 3-Pin Connector, Black
G00164947Courtesy of GENERAL MOTORS CORP.
