Inside Rear View Mirror (Map Lamps)

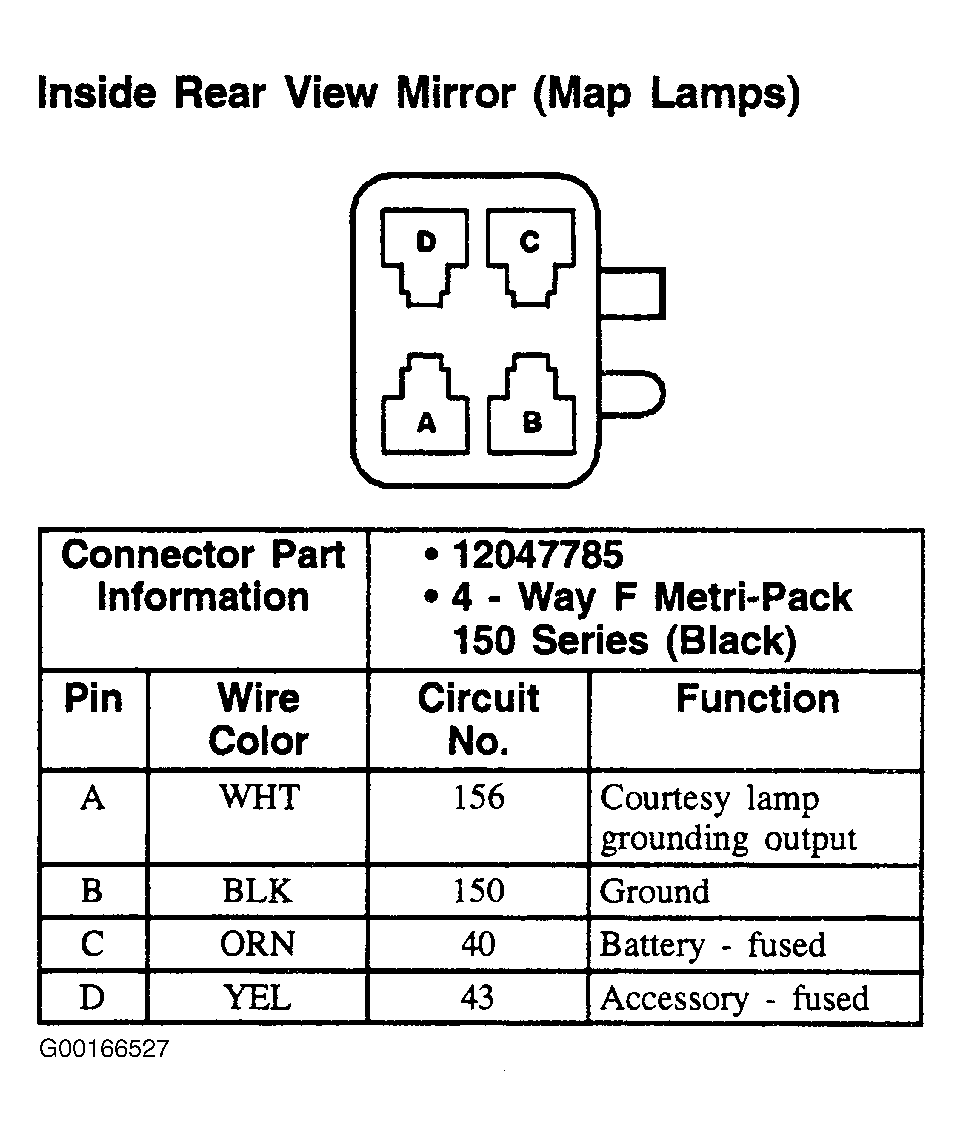

Fig 1: Inside Rear View Mirror (Map Lamps) - 4-Pin Connector, Black
G00166527Courtesy of GENERAL MOTORS CORP.
