Connector Terminal Identification
›
Torque Converter Clutch Pulse Width Modulation Solenoid Valve
Torque Converter Clutch Pulse Width Modulation Solenoid Valve

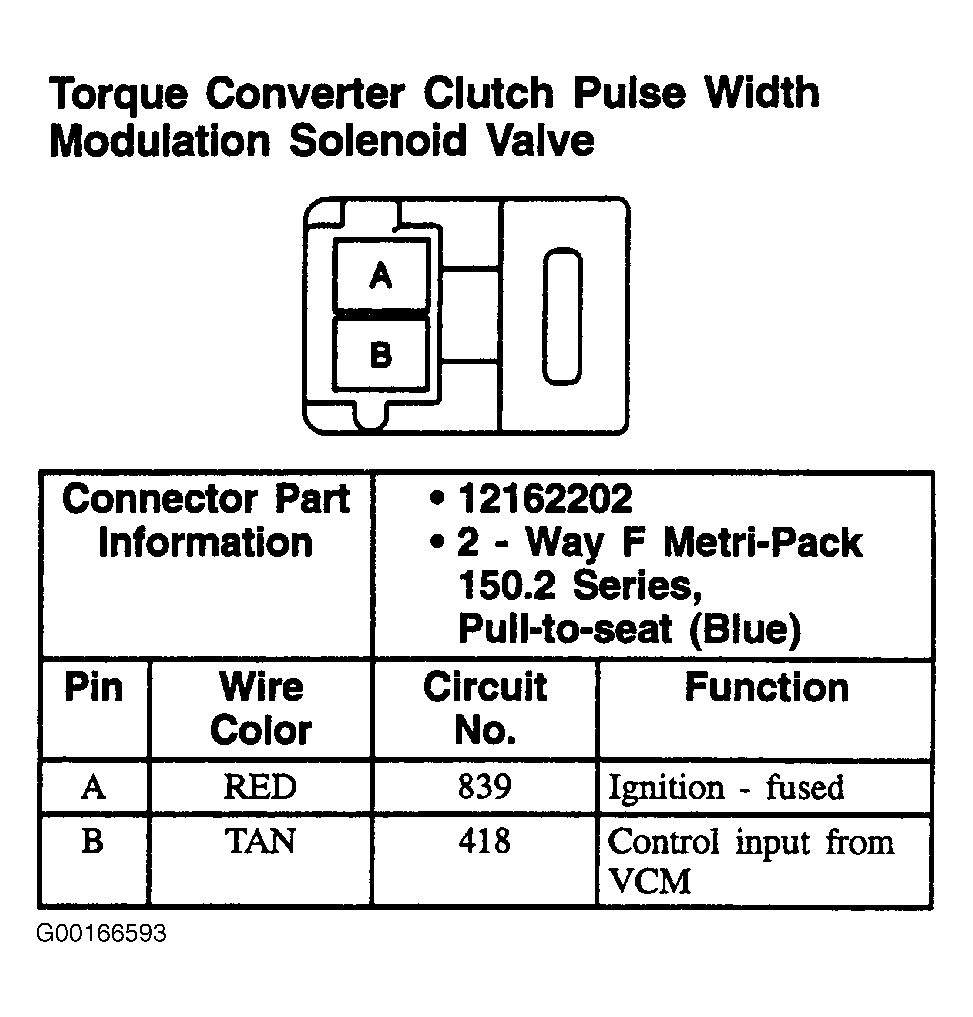

Fig 1: Torque Converter Clutch Pulse Width Modulation Solenoid Valve - 2-Pin Connector, Blue
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
