Heater & A/C Controller C1 (Mode Controls)

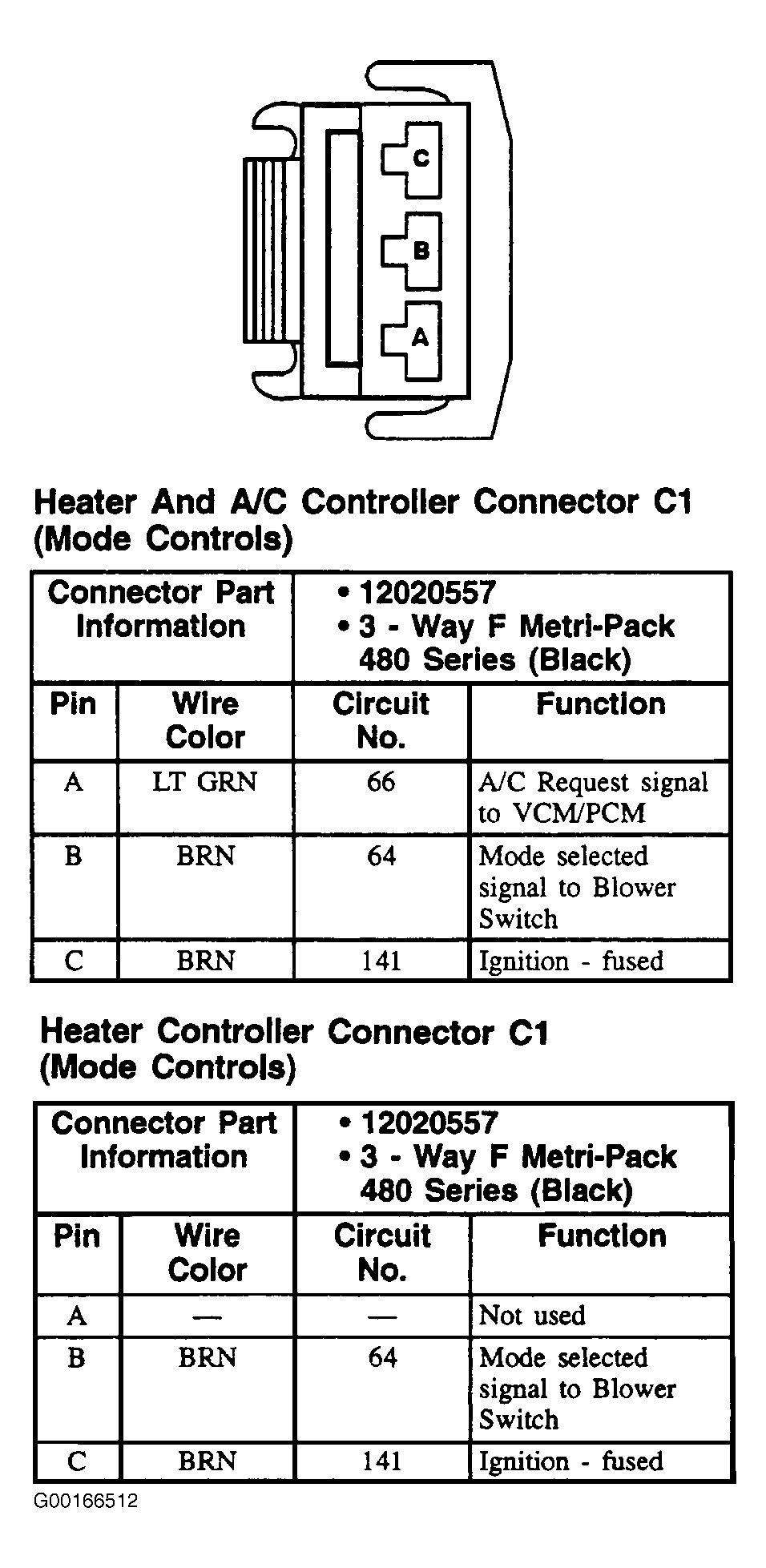

Fig 1: Heater & A/C Controller C1 (Mode Controls) - 3-Pin Connector, Black
G00166512Courtesy of GENERAL MOTORS CORP.
