Automatic Transmission Fluid Pressure Manual Valve Position Switch
Automatic Transmission Fluid Pressure Manual Valve Position Switch

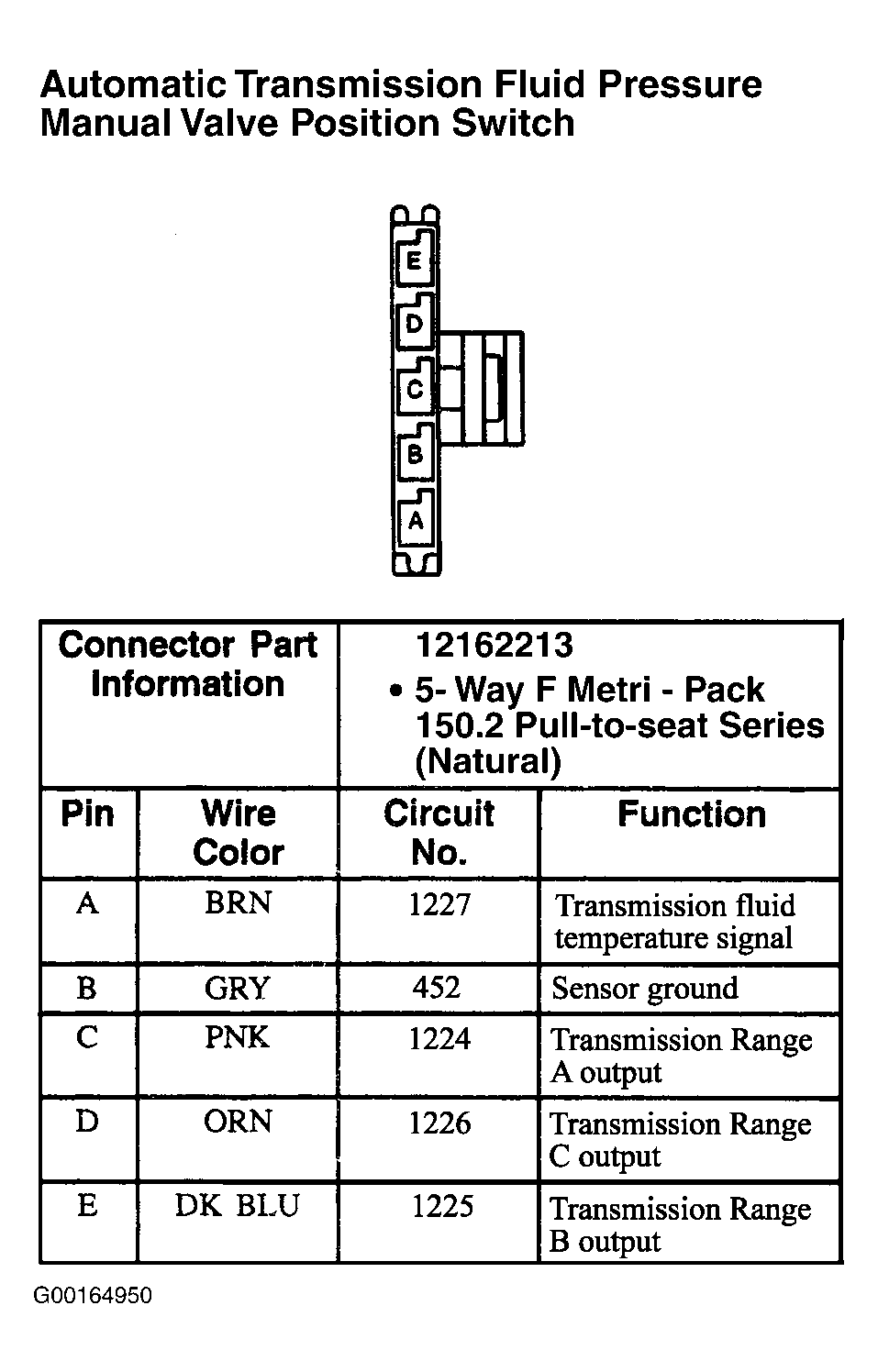

Fig 1: Automatic Transmission Fluid Pressure Manual Valve Position Switch - 5-Pin Connector, Natural
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
