Home › GMC › 1997 › Jimmy 4D Utility, 4WD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C226

C100 To C603: C226

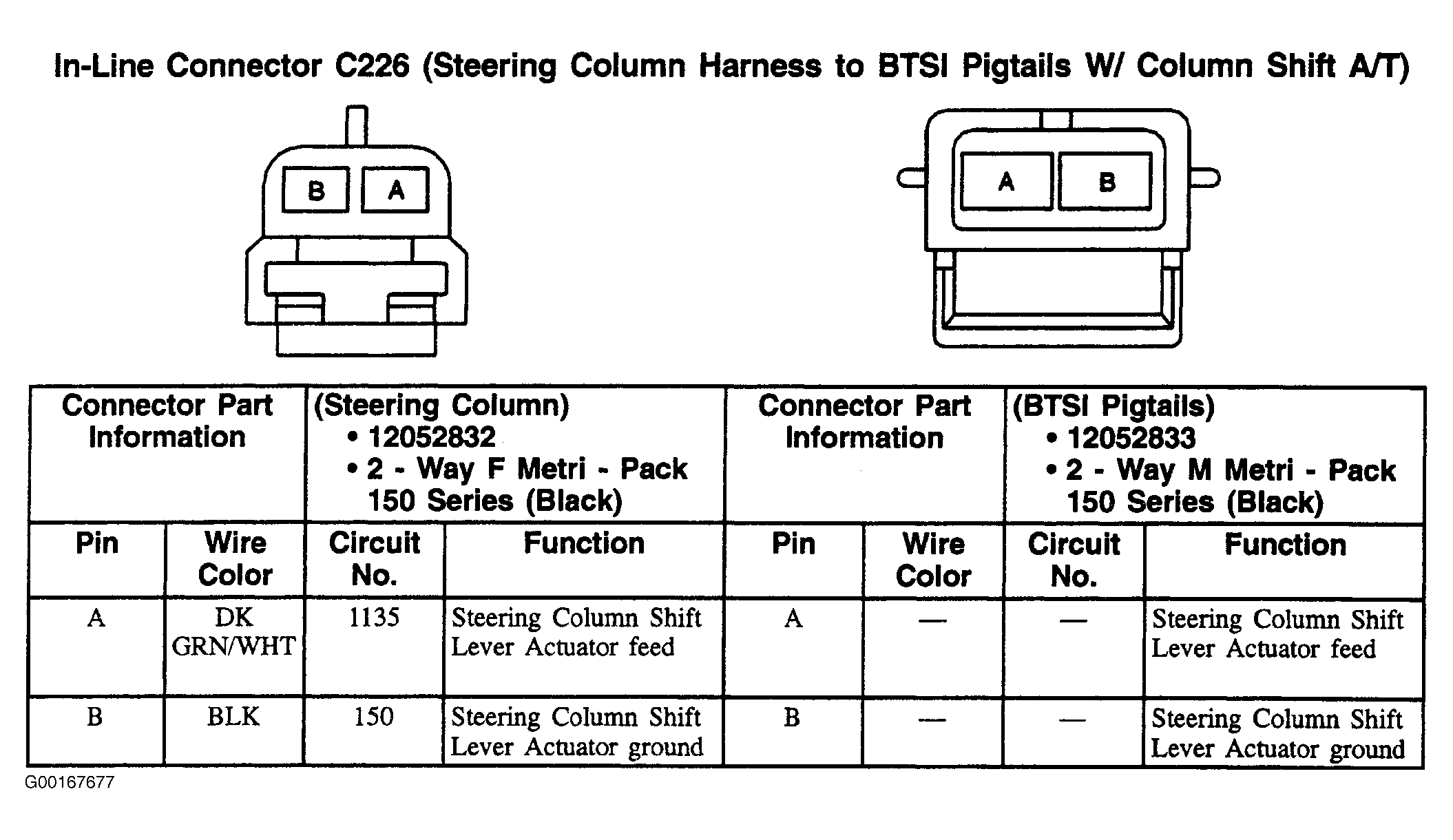

Fig 1: C226 - 2-Pin Connector, Black
G00167677Courtesy of GENERAL MOTORS CORP.
