Rear Window Wiper & Washer Switch

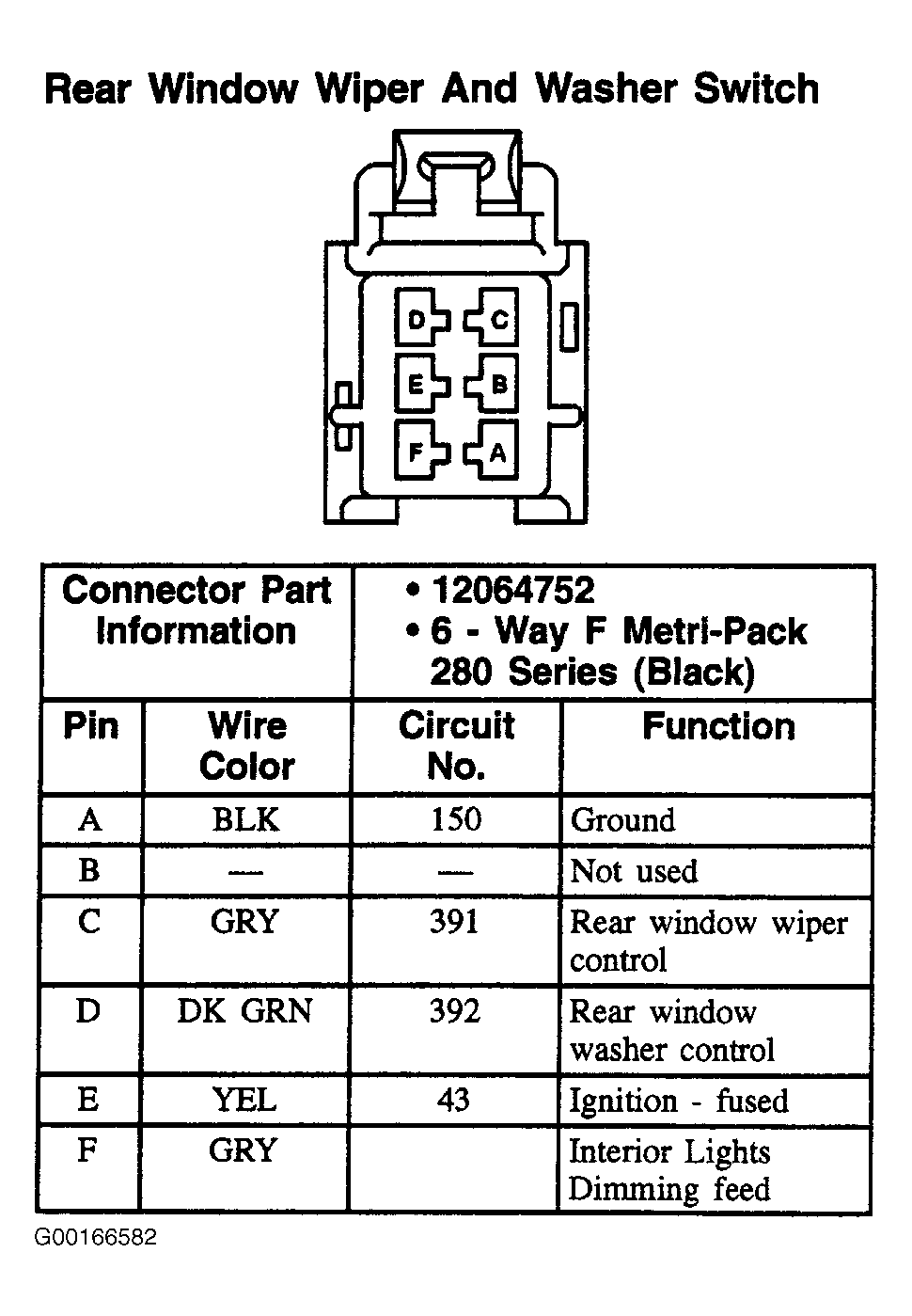

Fig 1: Rear Window Wiper & Washer Switch - 6-Pin Connector, Black
G00166582Courtesy of GENERAL MOTORS CORP.
