A/C Compressor Cycling Switch (4.3L)

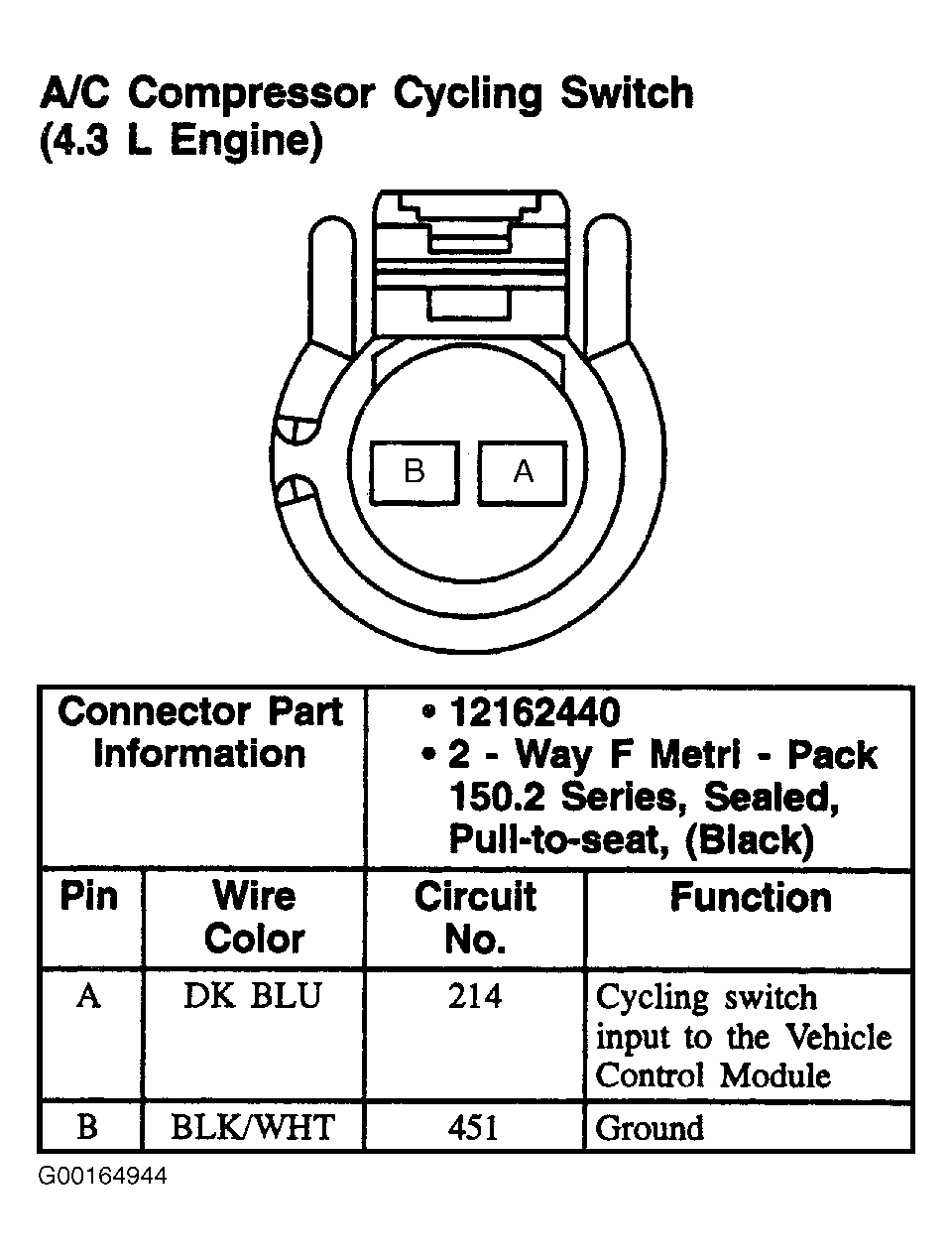

Fig 1: A/C Compressor Cycling Switch (4.3L) - 2-Pin Connector, Black
G00164944Courtesy of GENERAL MOTORS CORP.
