A/C Compressor
A/C Compressor

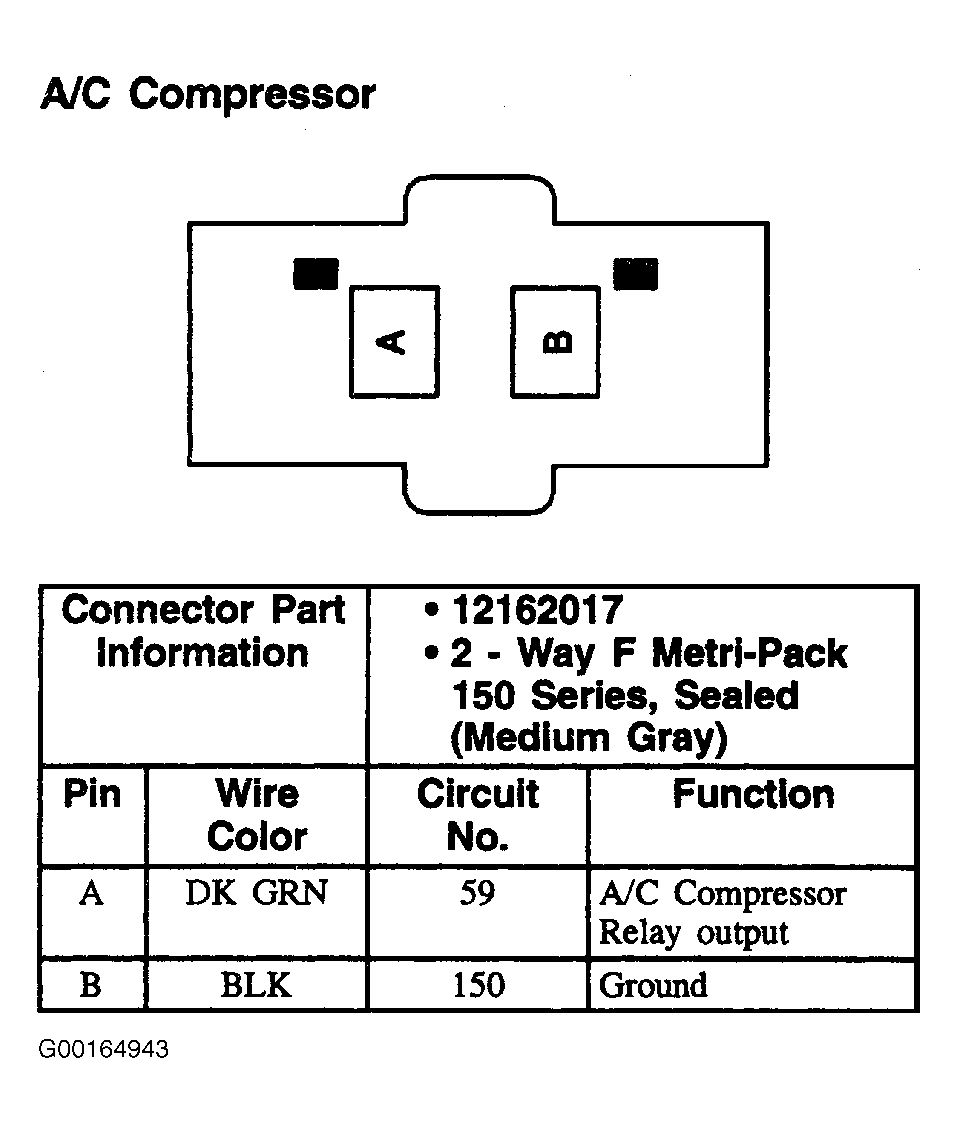

Fig 1: A/C Compressor - 2-Pin Connector, Medium Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
