Connector Terminal Identification
›
Ambient Air Temperature Sensor
Ambient Air Temperature Sensor

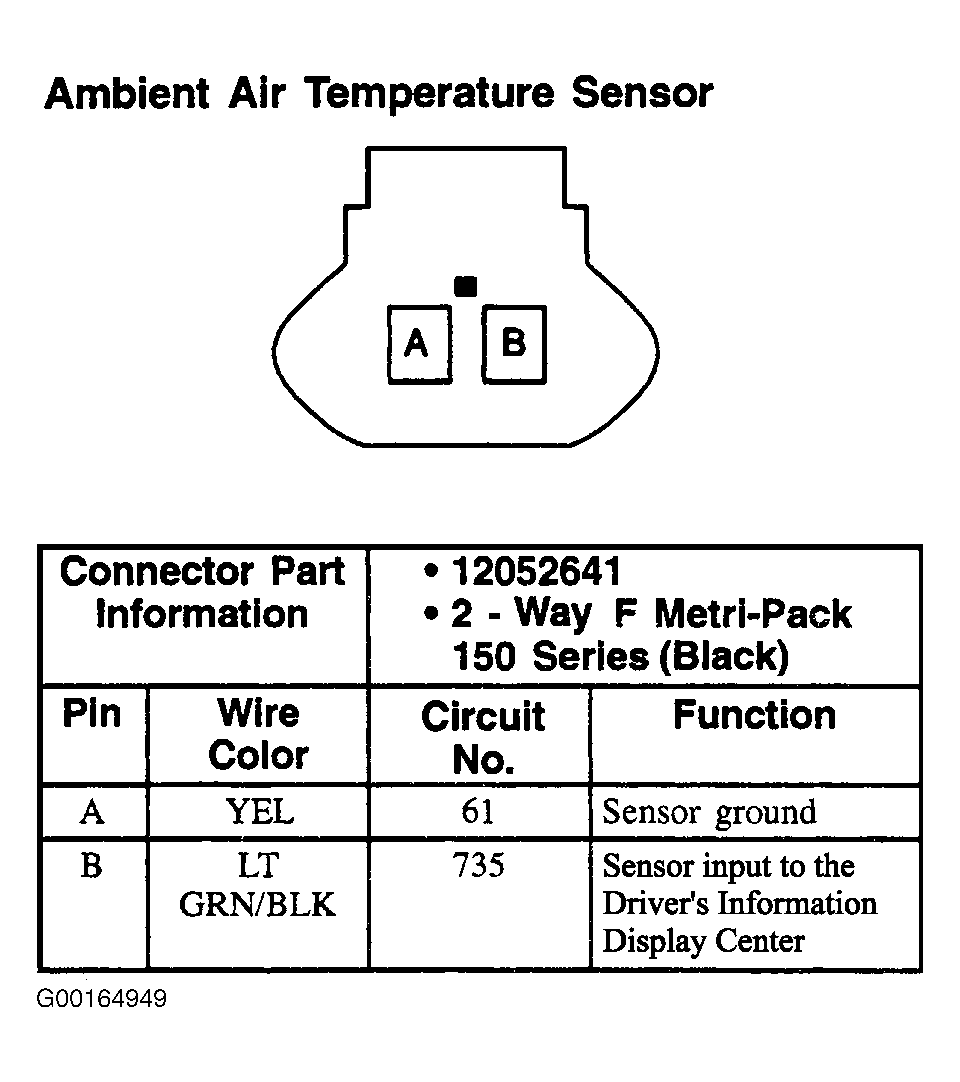

Fig 1: Ambient Air Temperature Sensor - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
