Backup Lamp Connectors
›
Backup Lamp (Pickup)
Backup Lamp (Pickup)

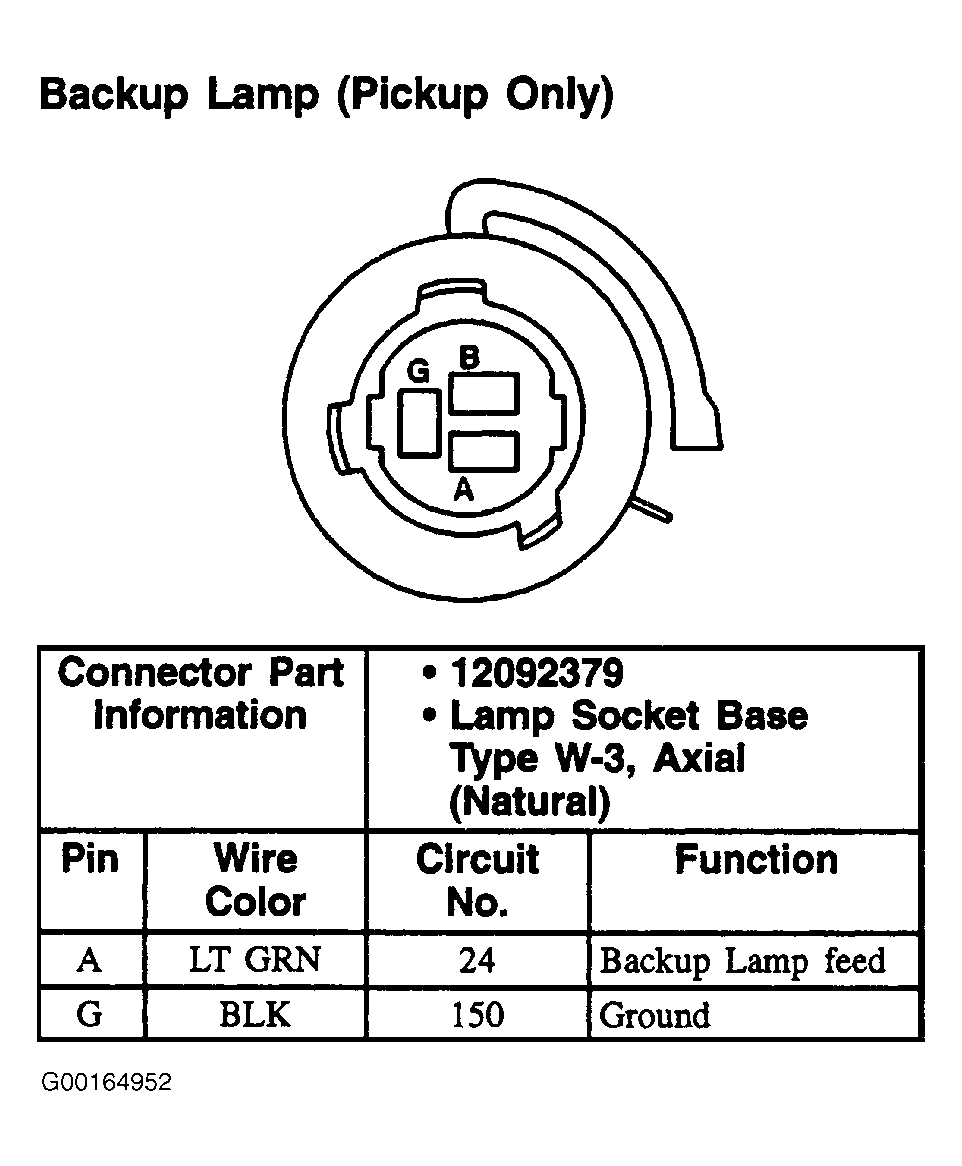

Fig 1: Backup Lamp (Pickup) - 3-Pin Connector, Natural
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
