Brake Pressure Warning Switch
Brake Pressure Warning Switch

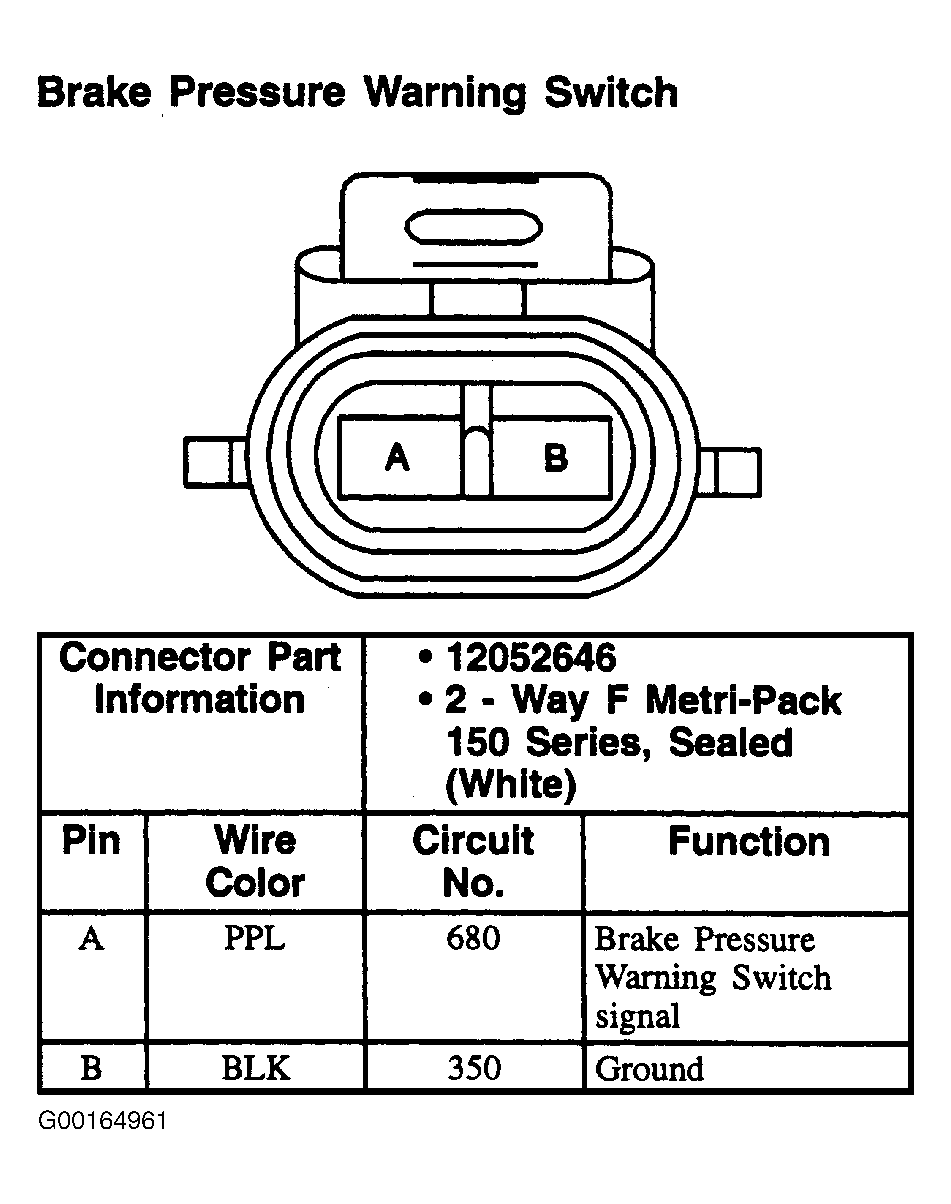

Fig 1: Brake Pressure Warning Switch - 2-Pin Connector, White
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
