Connector Terminal Identification
›
C100 To C603
›
C102 (2.2L)
C102 (2.2L)

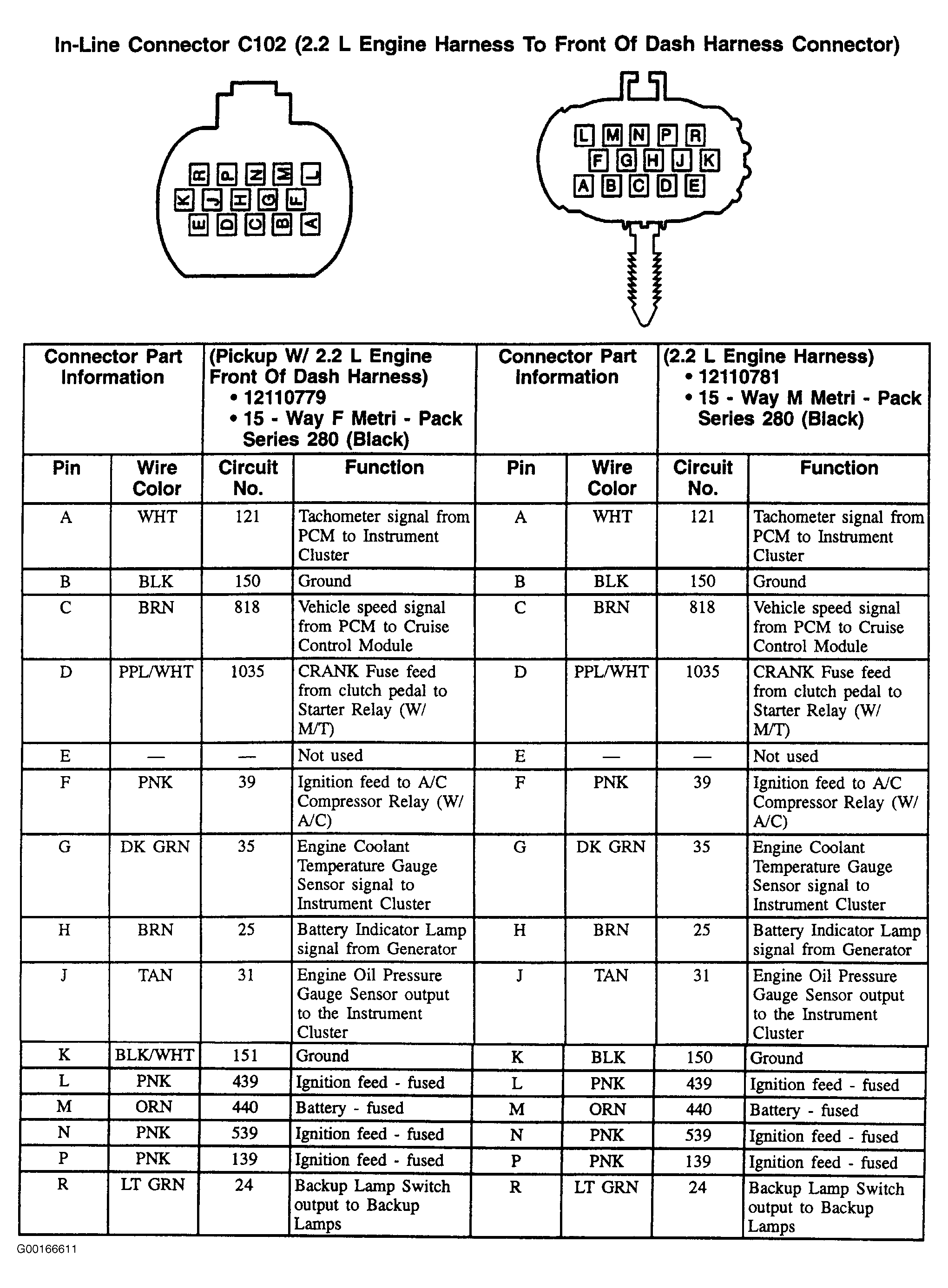

Fig 1: C102 (2.2L) - 15-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
