Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C103

C100 To C603: C103

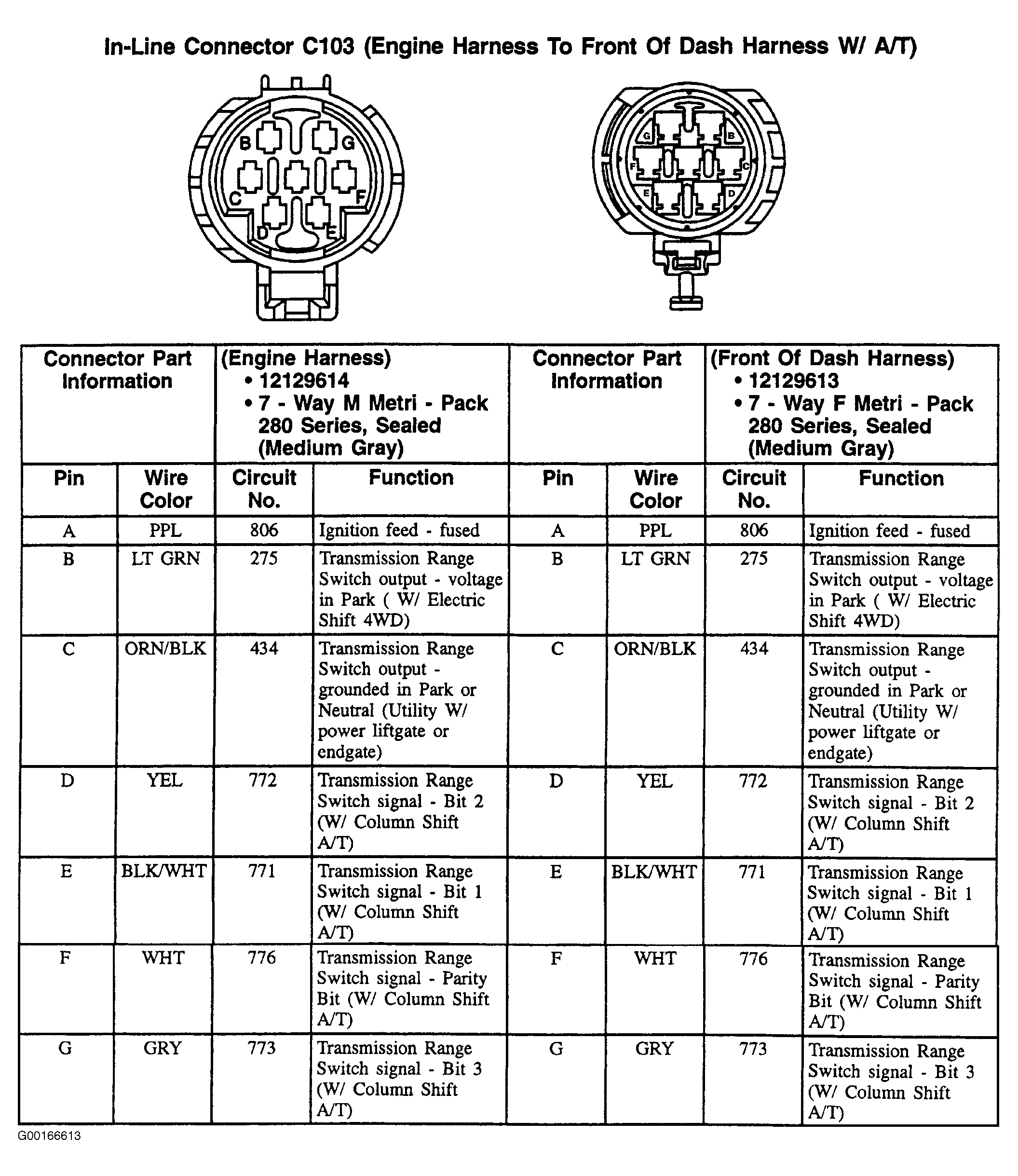

Fig 1: C103 - 7-Pin Connector, Medium Gray
G00166613Courtesy of GENERAL MOTORS CORP.
