Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C106

C100 To C603: C106

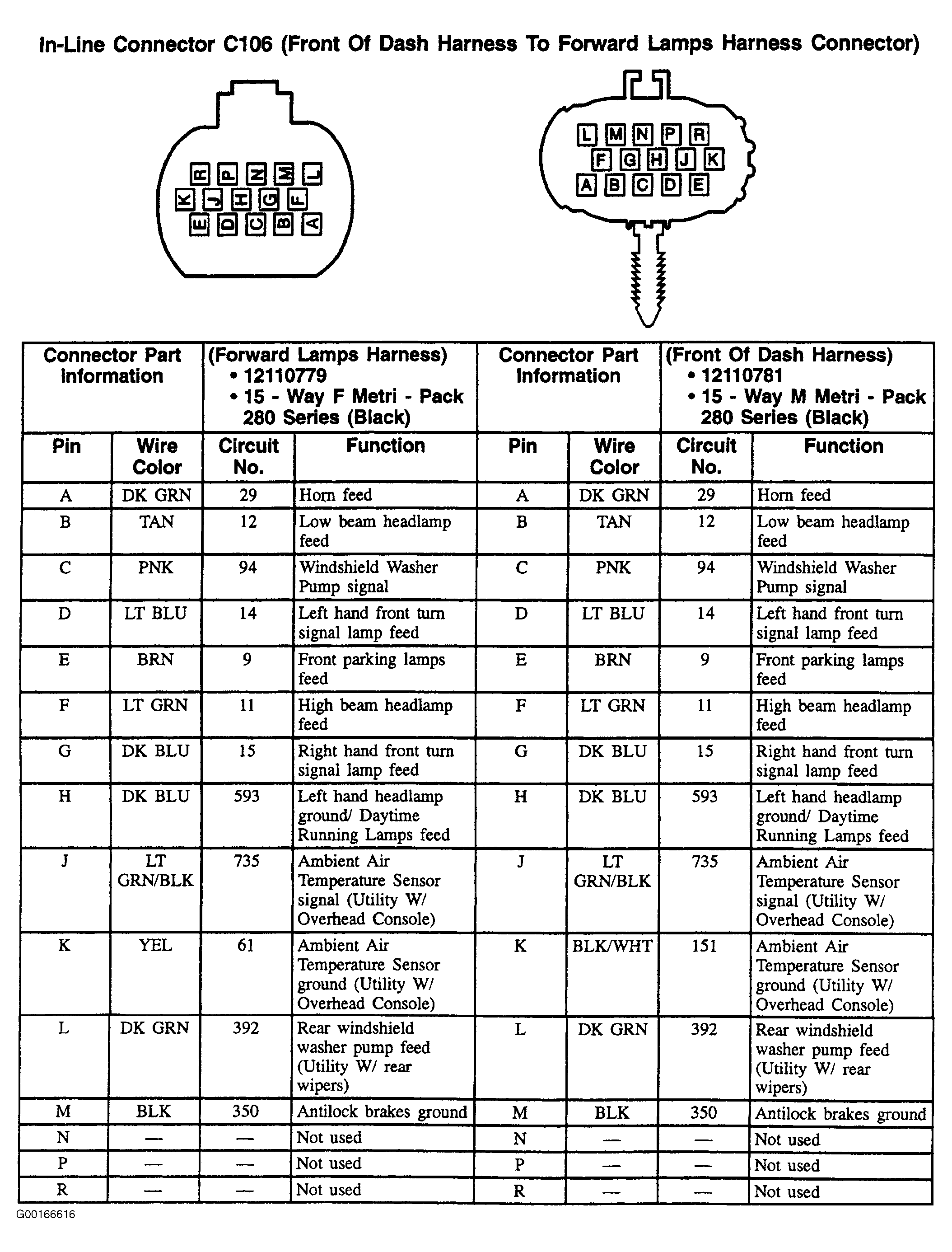

Fig 1: C106 - 15-Pin Connector, Black
G00166616Courtesy of GENERAL MOTORS CORP.
