Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C107

C100 To C603: C107

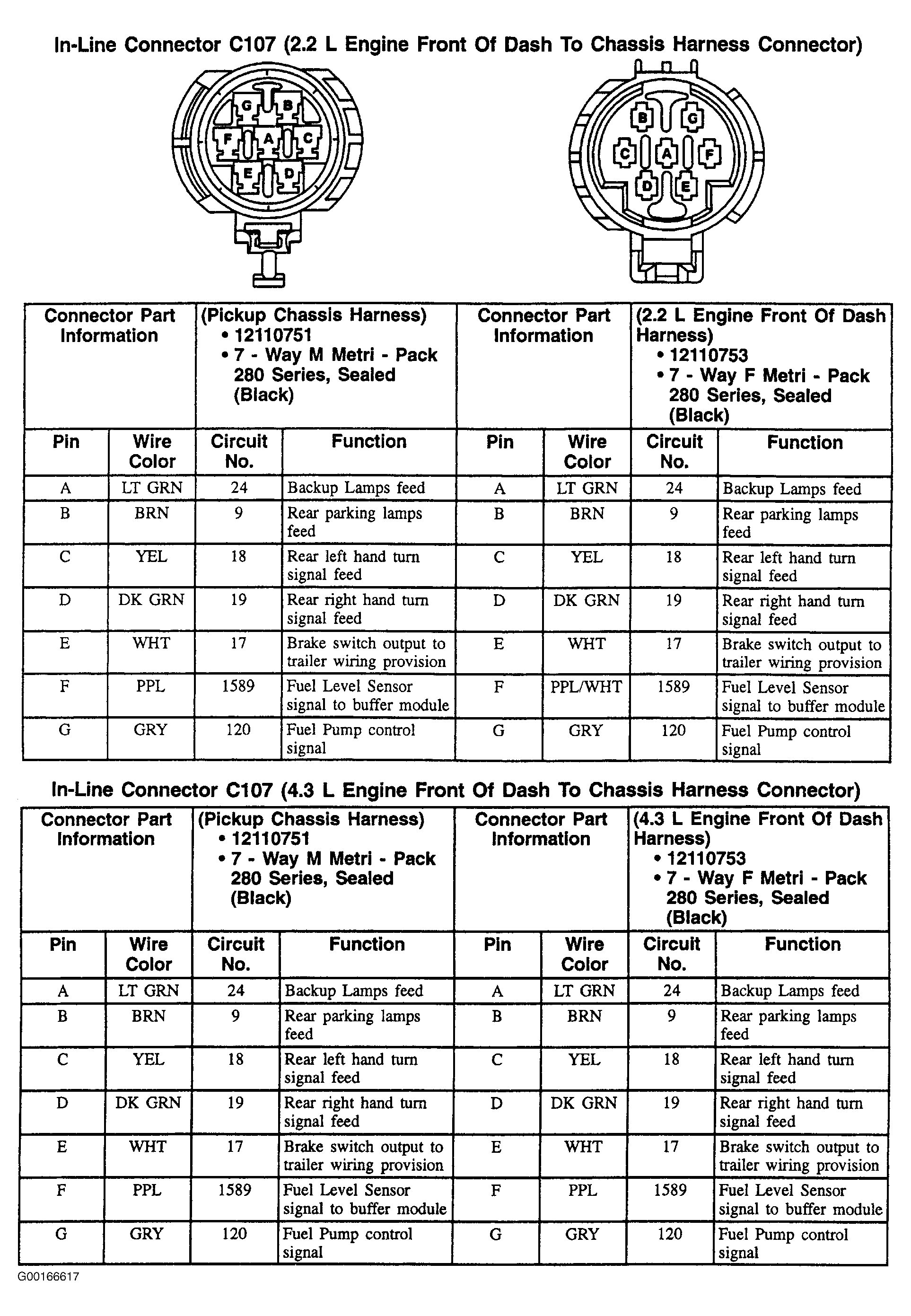

Fig 1: C107 - 7-Pin Connector, Black
G00166617Courtesy of GENERAL MOTORS CORP.
