Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C108

C100 To C603: C108

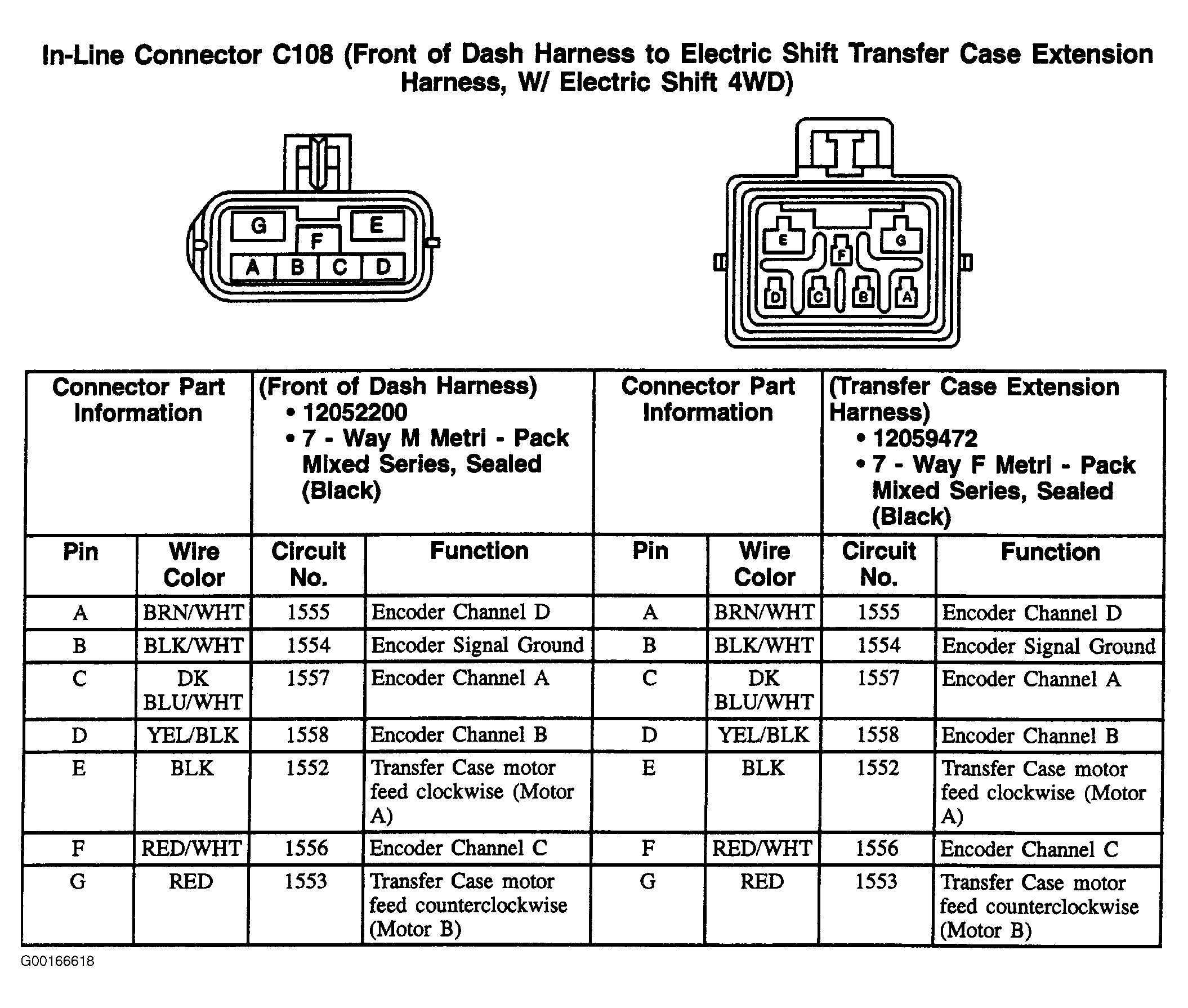

Fig 1: C108 - 7-Pin Connector, Black
G00166618Courtesy of GENERAL MOTORS CORP.
