C111 (2.2L)
C111 (2.2L)

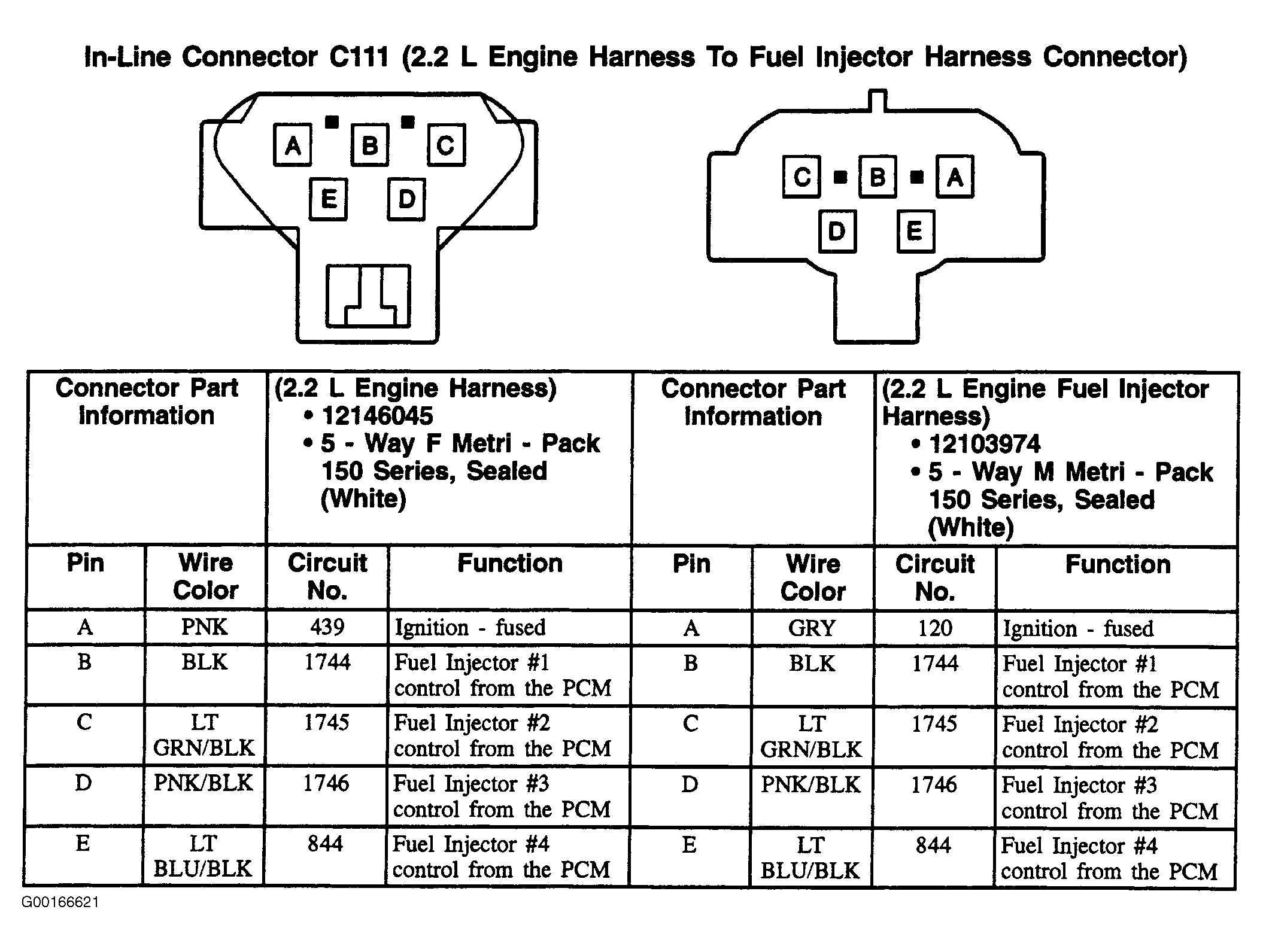

Fig 1: C111 (2.2L) - 5-Pin Connector, White
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
