Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C114

C100 To C603: C114

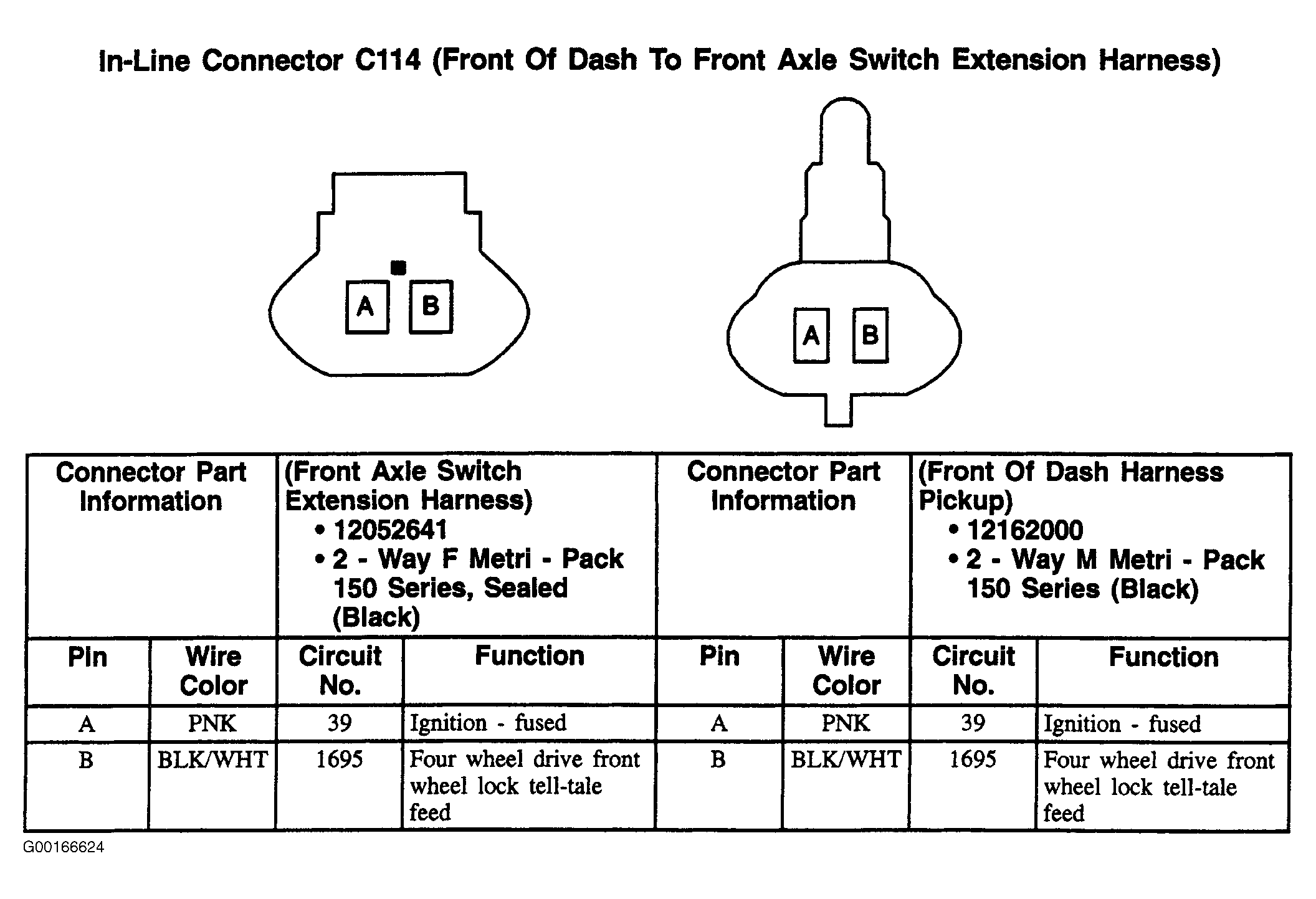

Fig 1: C114 - 2-Pin Connector, Black
G00166624Courtesy of GENERAL MOTORS CORP.
