Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C120

C100 To C603: C120

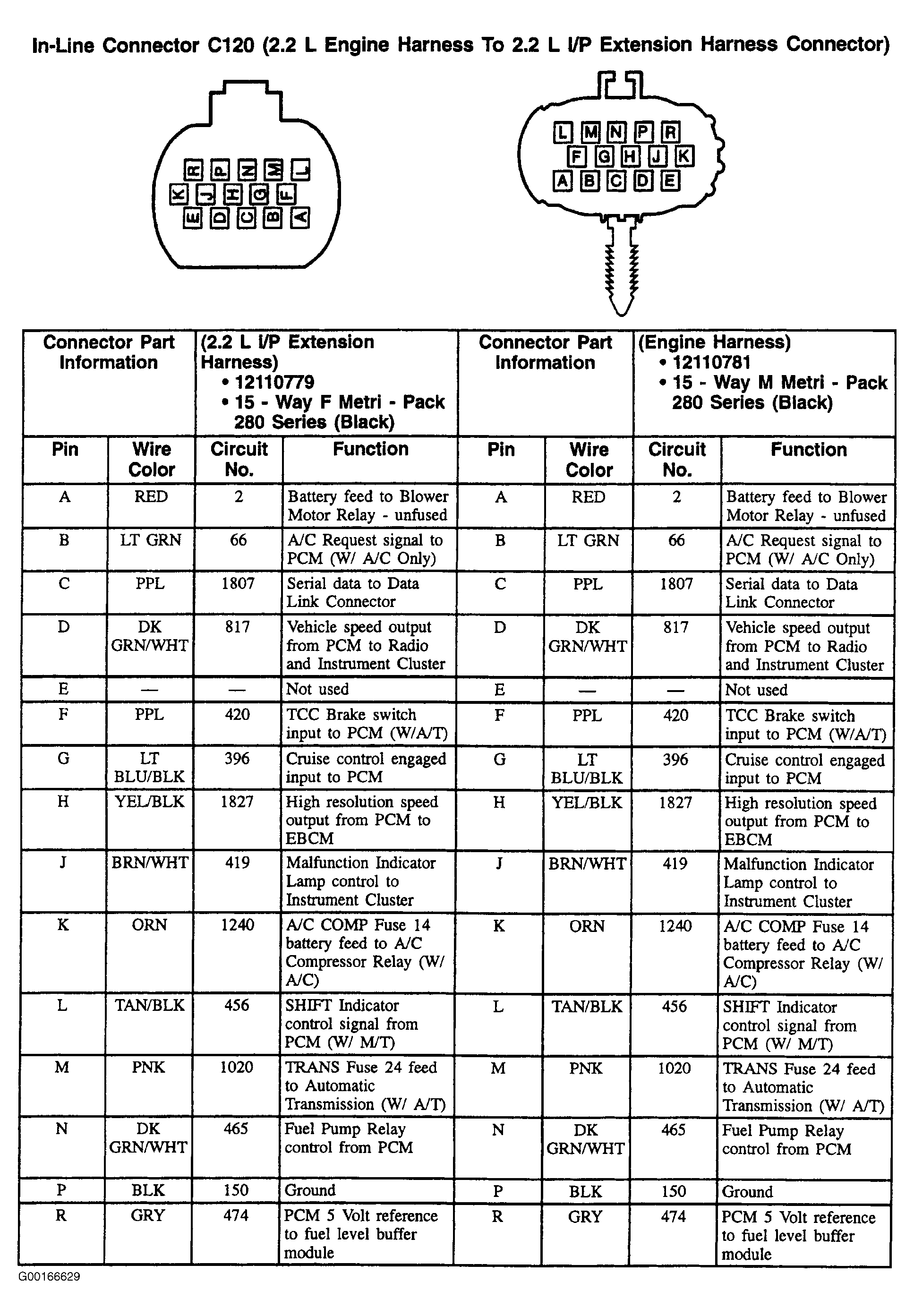

Fig 1: C120 - 15-Pin Connector, Black
G00166629Courtesy of GENERAL MOTORS CORP.
