C175 (2.2L)
C175 (2.2L)

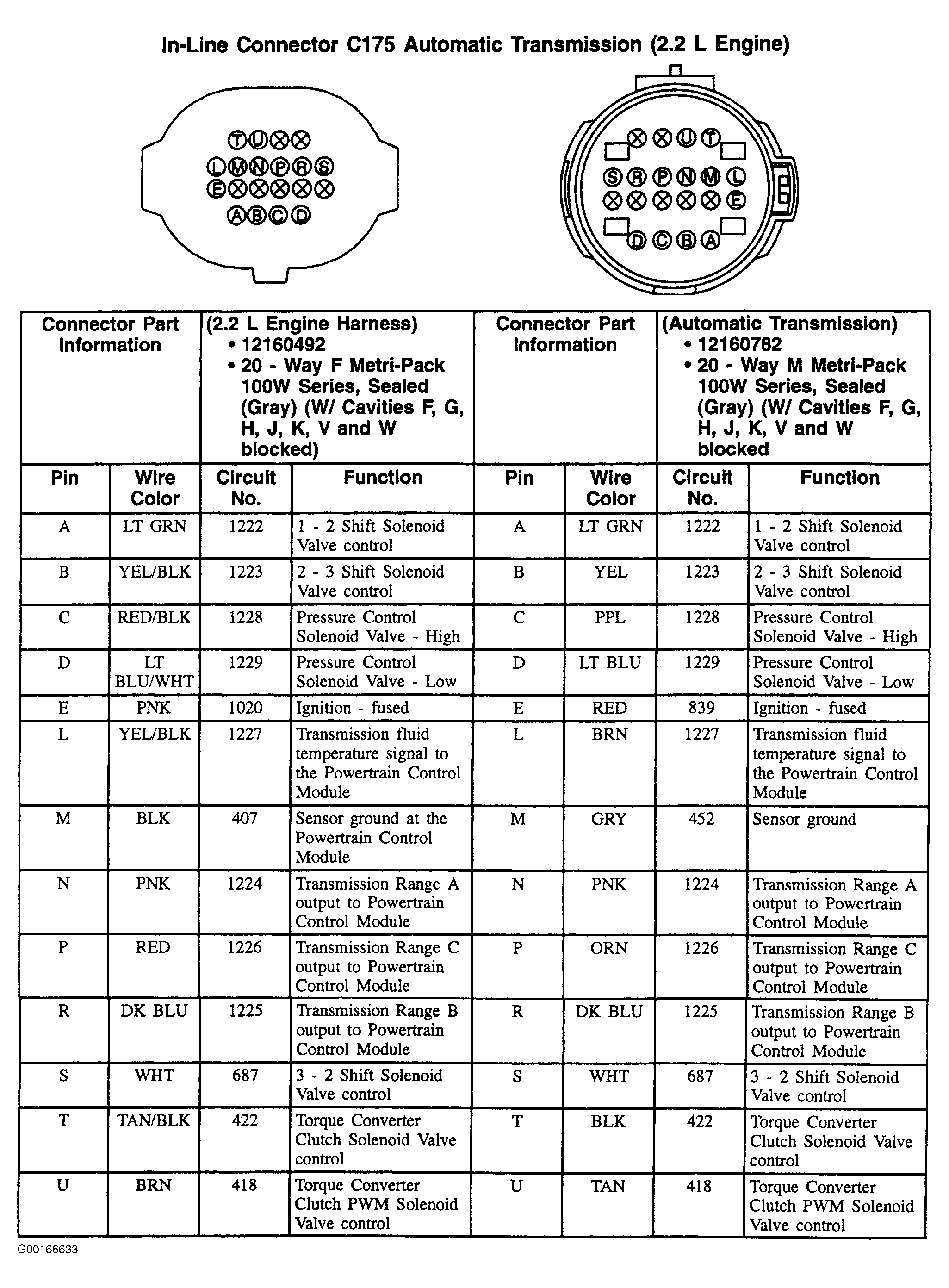

Fig 1: C175 (2.2L) - 20-Pin Connector, Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
