C200 (Utility)

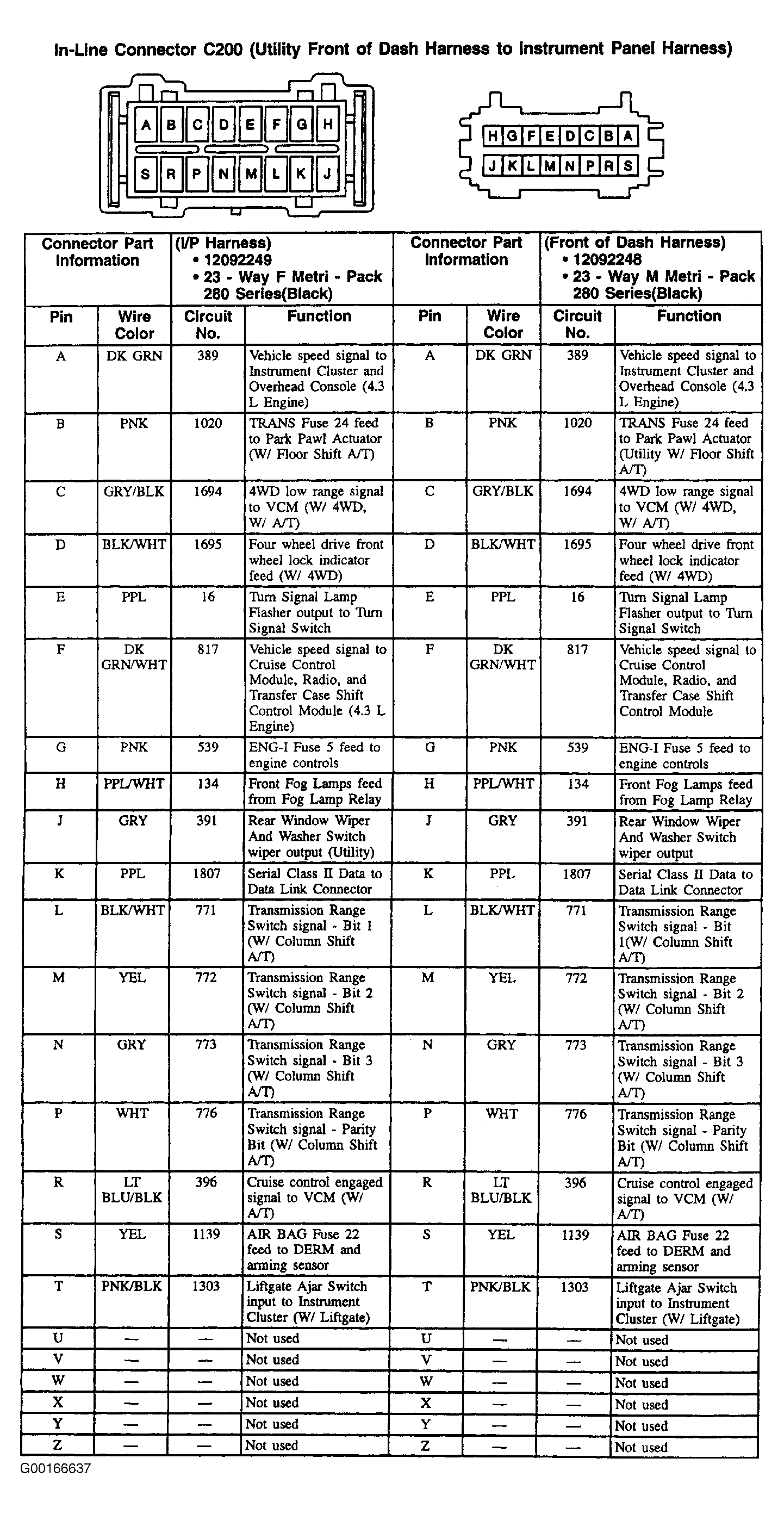

Fig 1: C200 (Utility) - 23-Pin Connector, Black
G00166637Courtesy of GENERAL MOTORS CORP.
