C201 (2.2L)
C201 (2.2L)

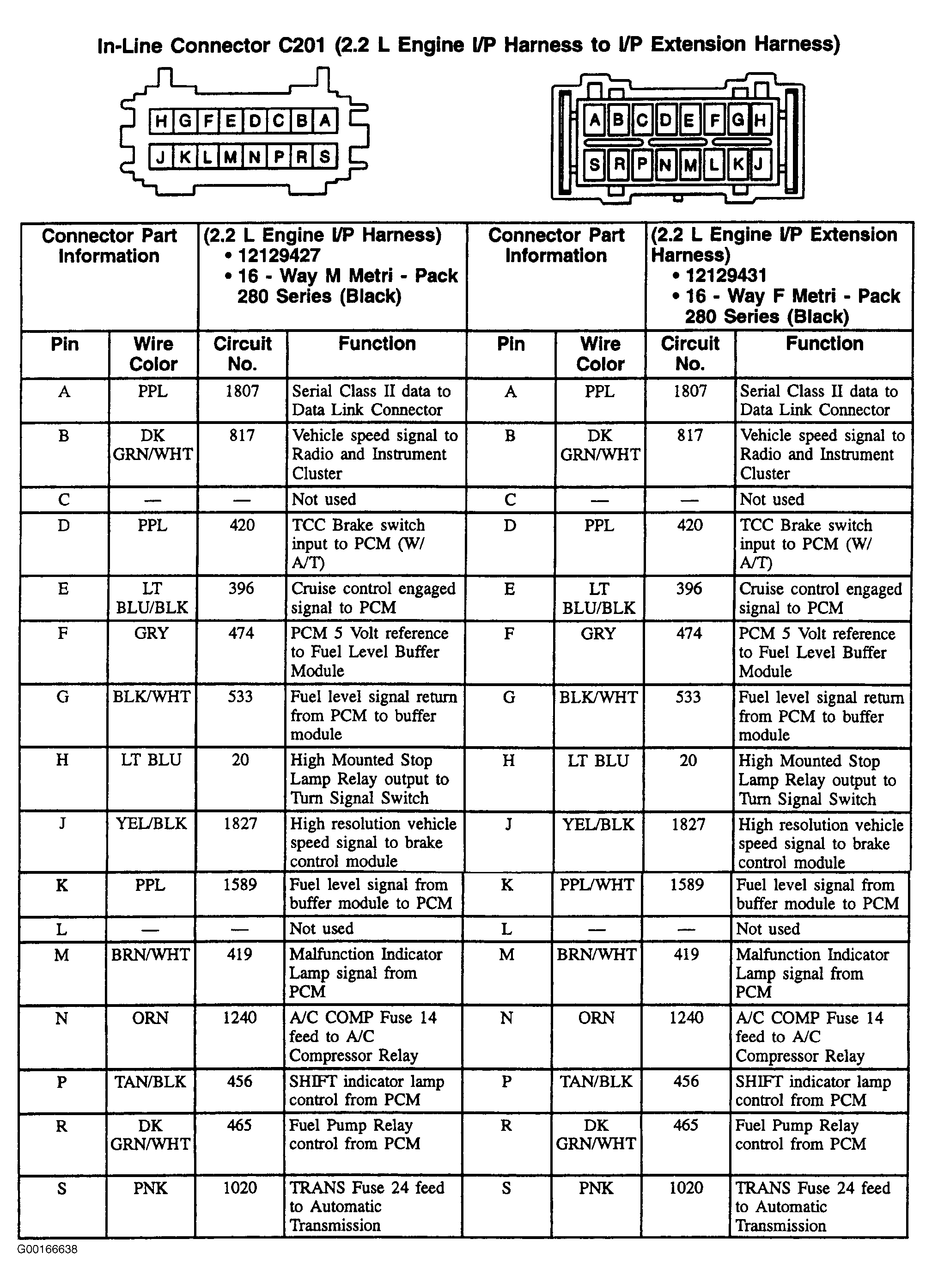

Fig 1: C201 (2.2L) - 16-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
