C201 (4.3L)
C201 (4.3L)

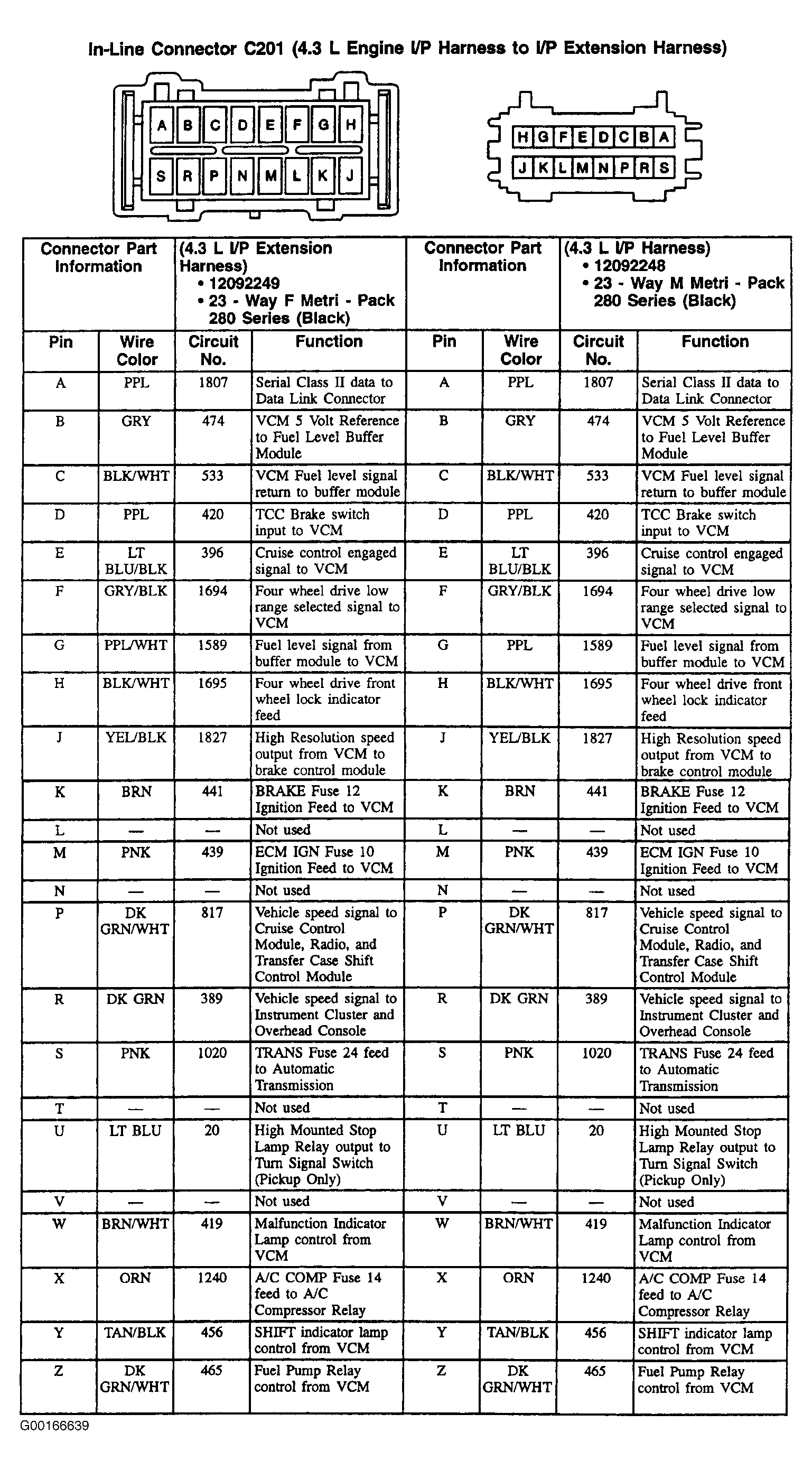

Fig 1: C201 (4.3L) - 23-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
