Jimmy 4D Utility, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Connector Terminal Identification
›
C100 To C603
›
C203 (2.2L)
C203 (2.2L)

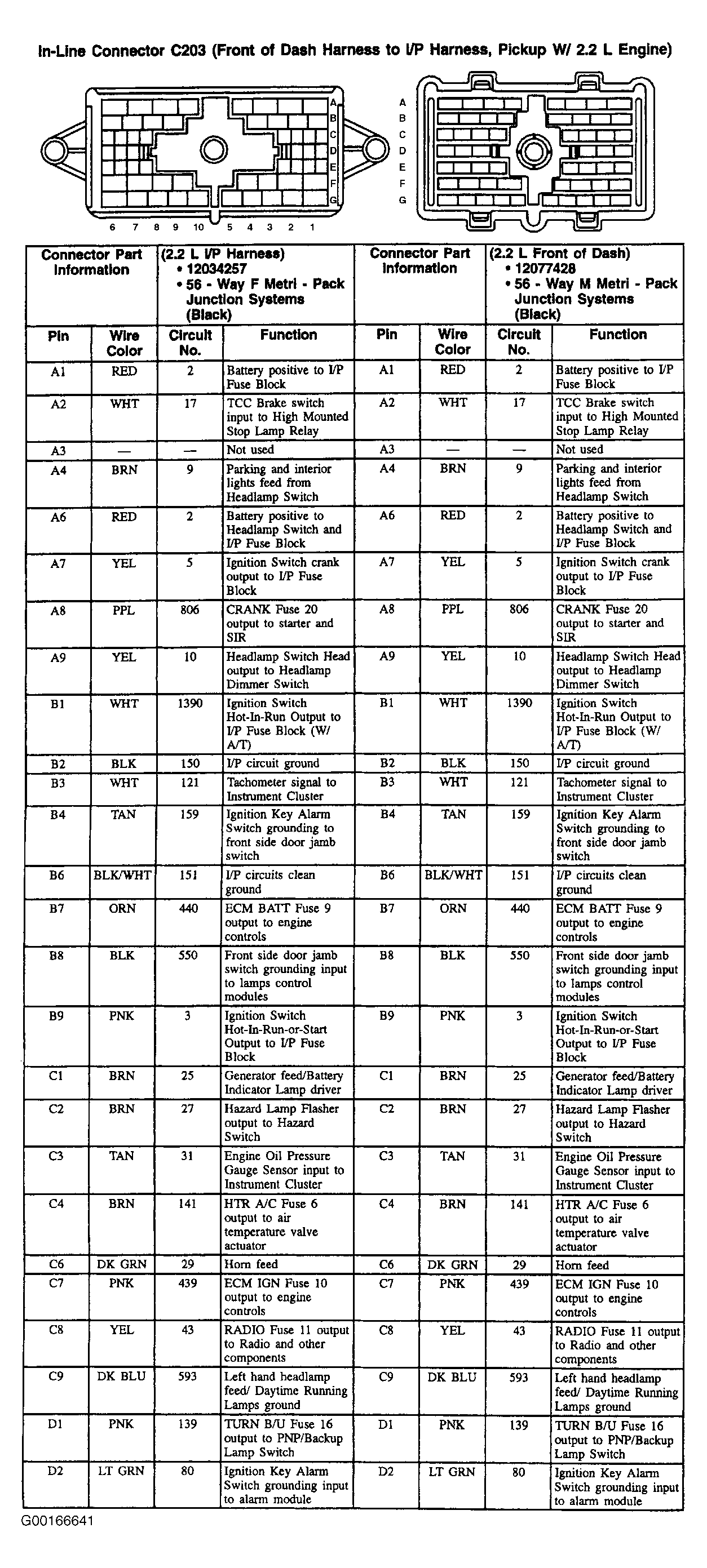

Fig 1: C203 (2.2L) - 56-Pin Connector, Black (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

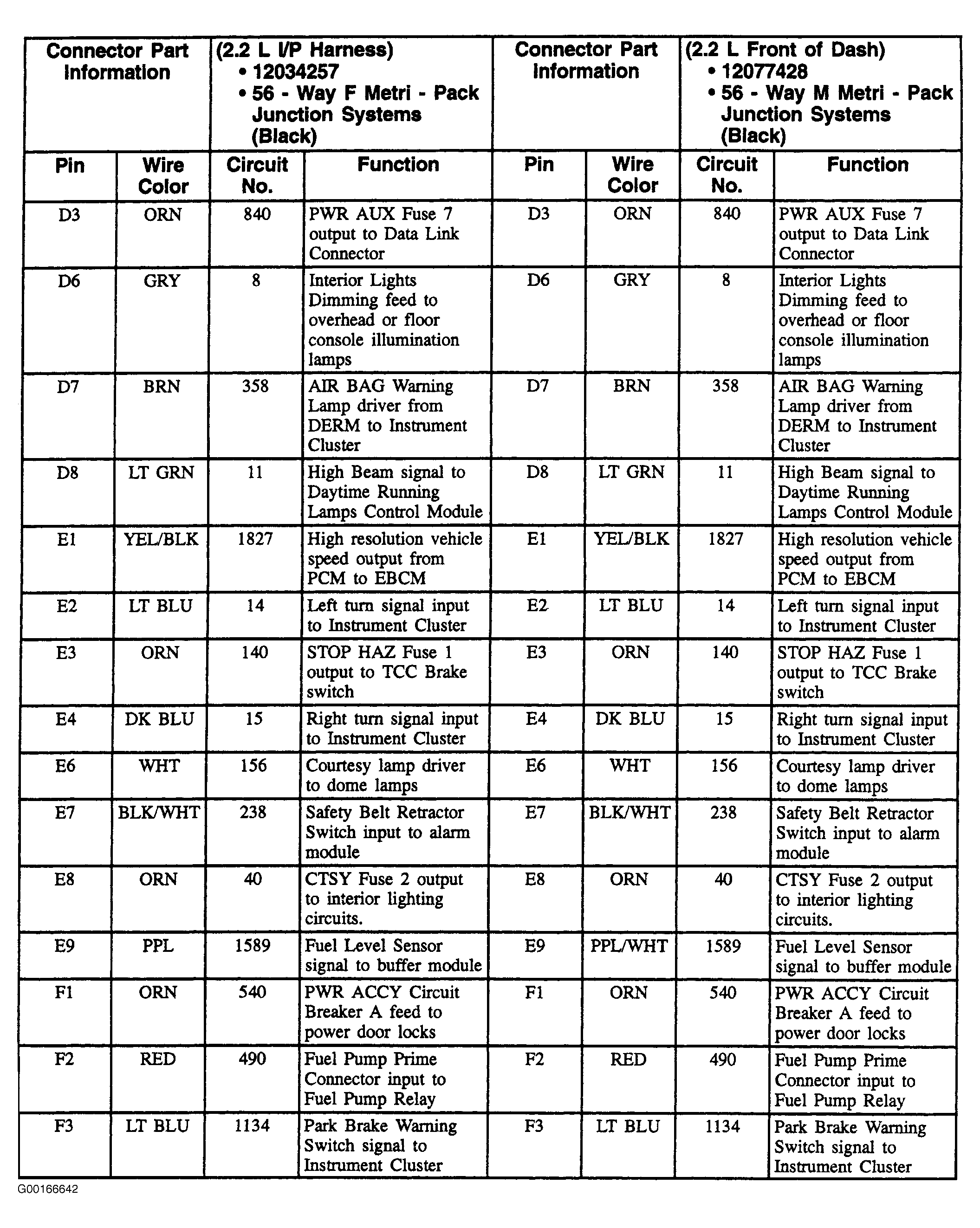

Fig 2: C203 (2.2L) - 56-Pin Connector, Black (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

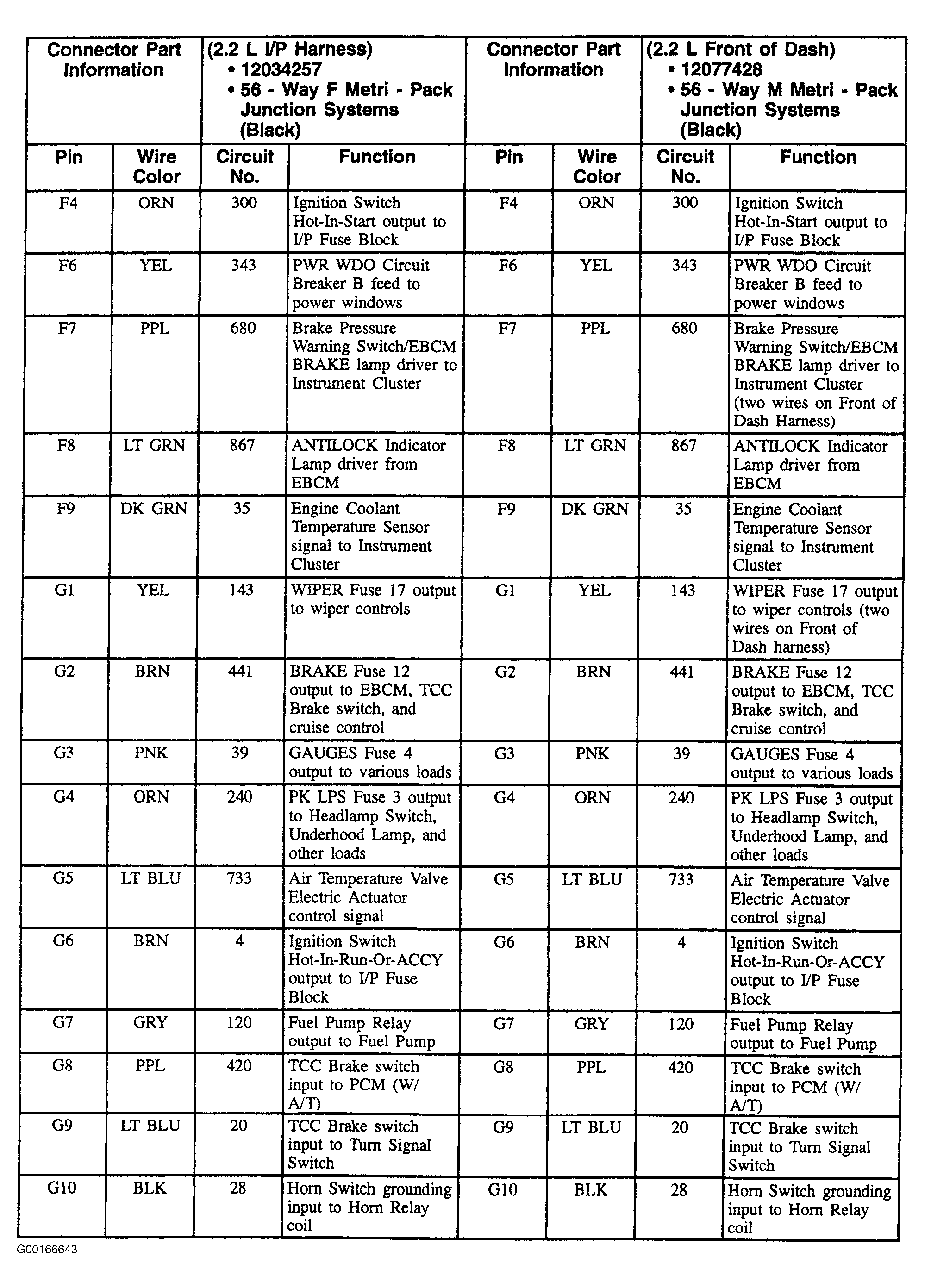

Fig 3: C203 (2.2L) - 56-Pin Connector, Black (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
