Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C207

C100 To C603: C207

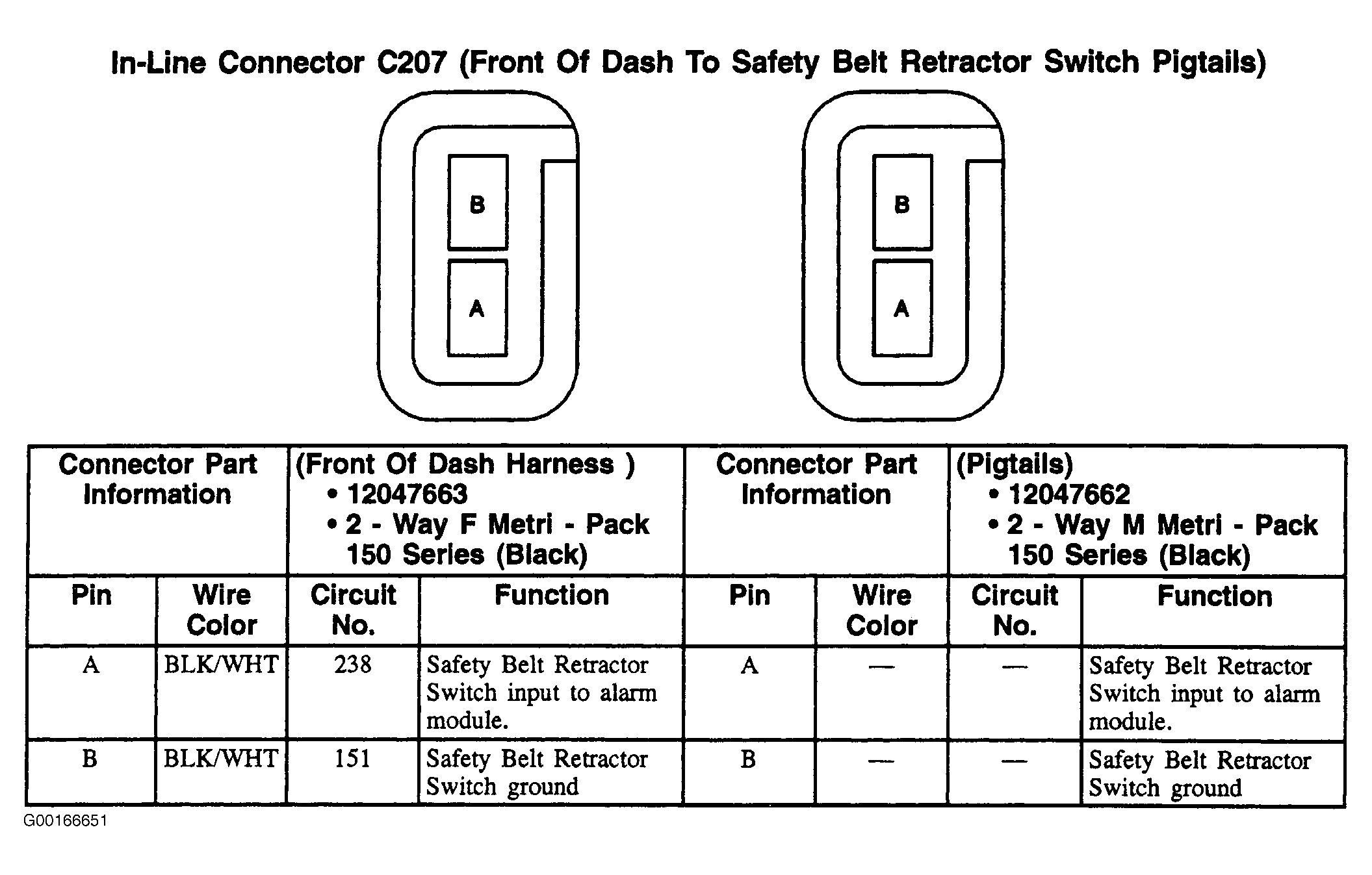

Fig 1: C207 - 2-Pin Connector, Black
G00166651Courtesy of GENERAL MOTORS CORP.
