Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C212

C100 To C603: C212

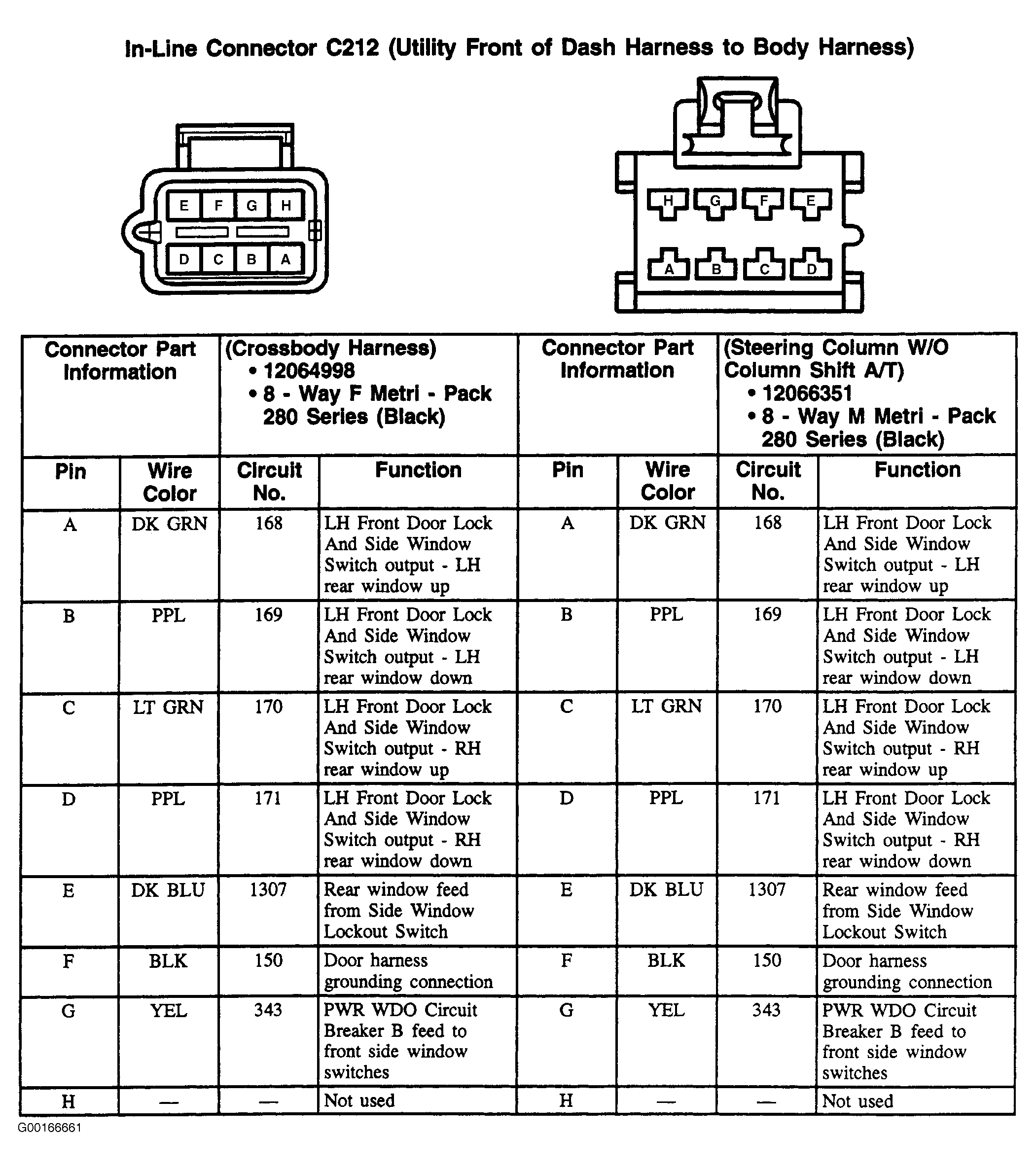

Fig 1: C212 - 8-Pin Connector, Black
G00166661Courtesy of GENERAL MOTORS CORP.
