Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C214

C100 To C603: C214

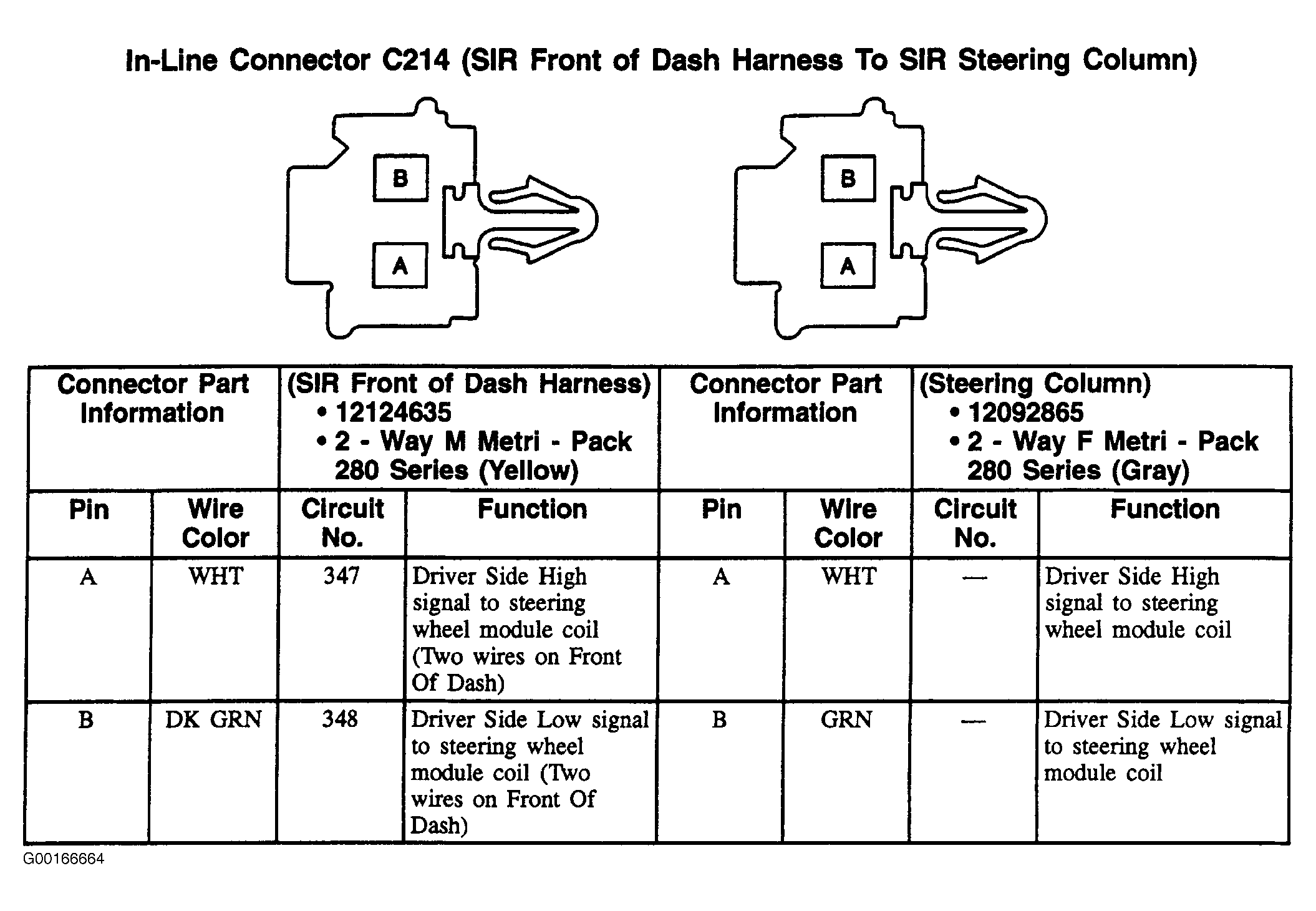

Fig 1: C214 - 2-Pin Connector, Yellow/Gray
G00166664Courtesy of GENERAL MOTORS CORP.
