Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C218

C100 To C603: C218

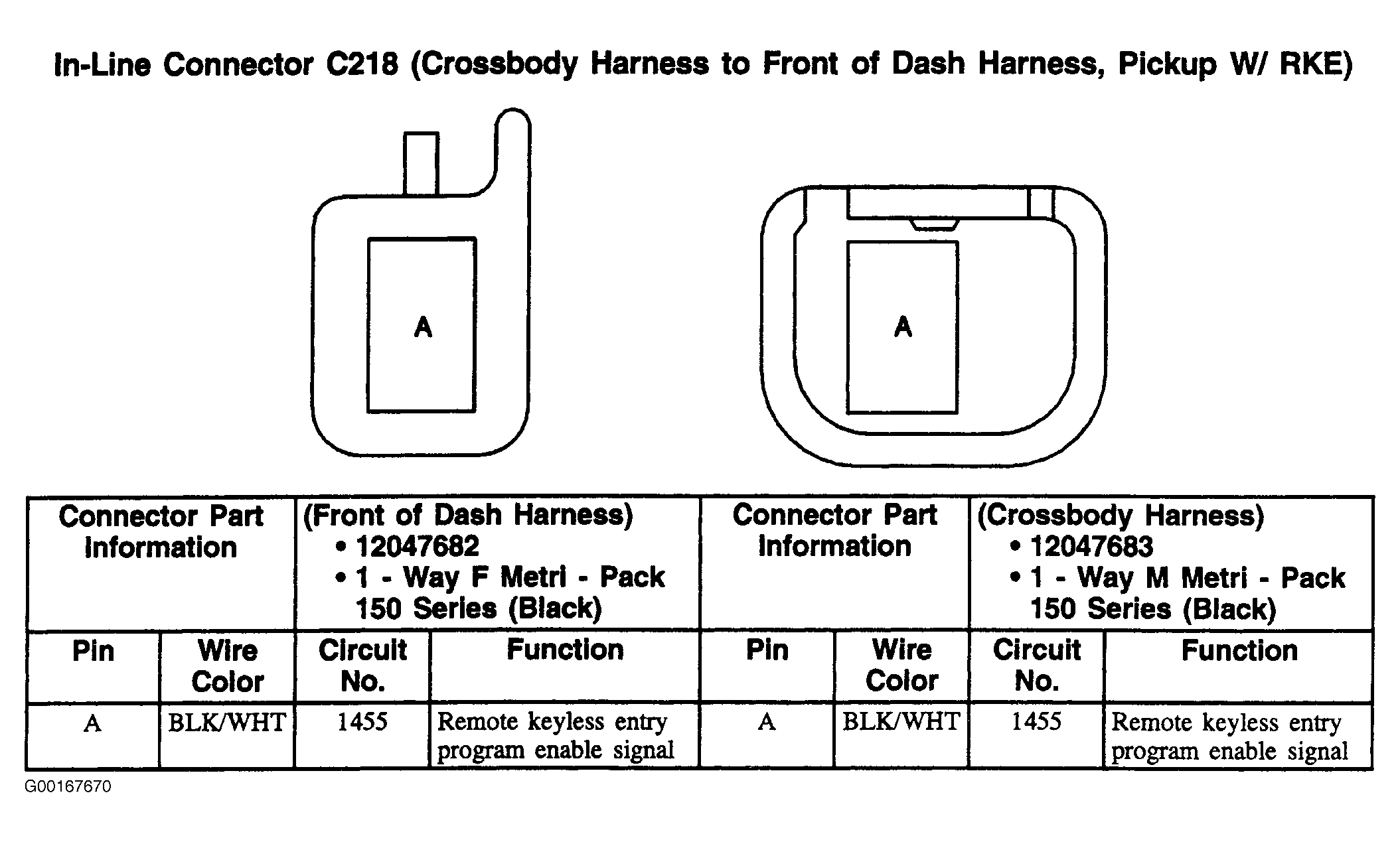

Fig 1: C218 - 1-Pin Connector, Black
G00167670Courtesy of GENERAL MOTORS CORP.
