Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C219

C100 To C603: C219

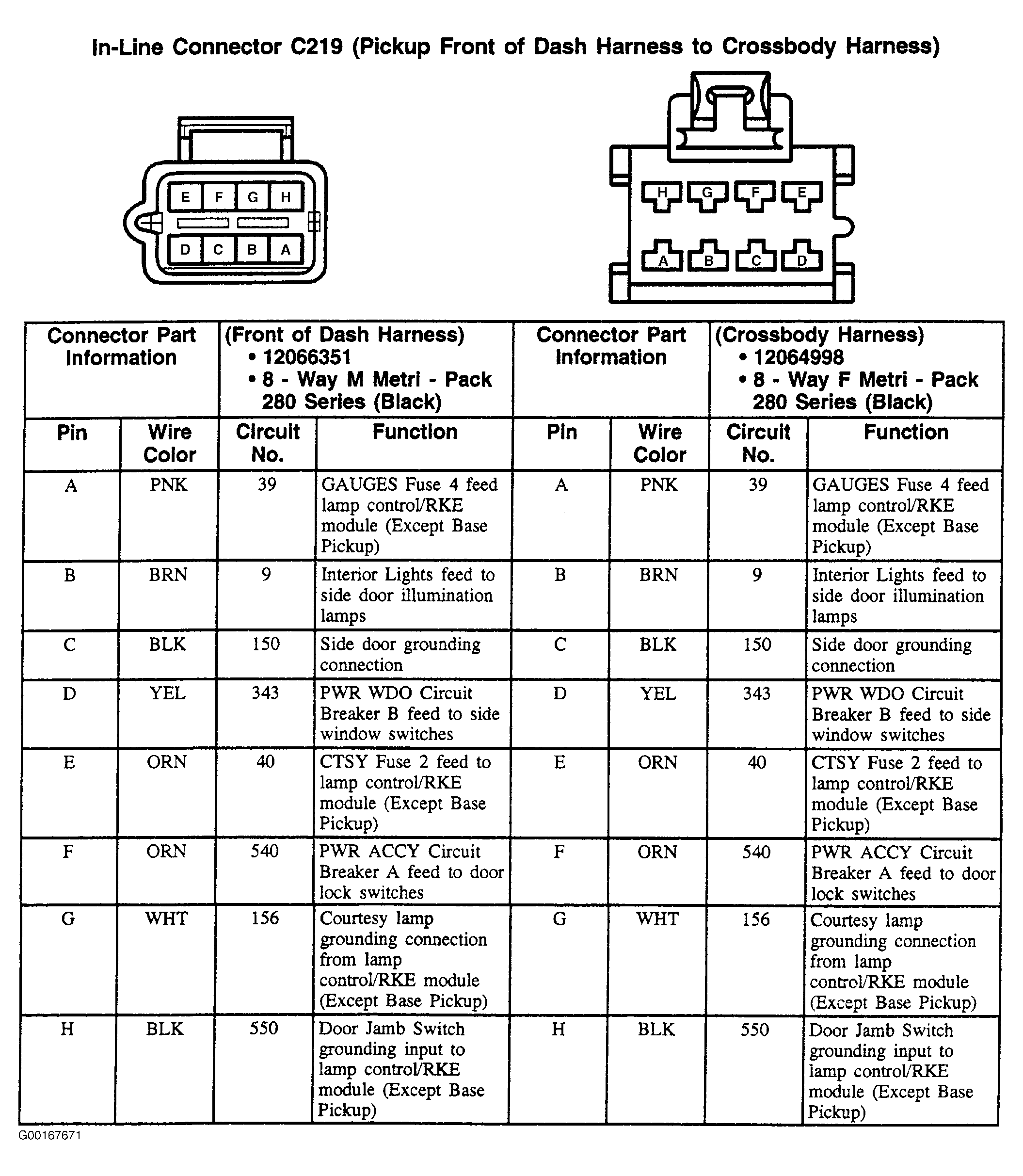

Fig 1: C219 - 8-Pin Connector, Black
G00167671Courtesy of GENERAL MOTORS CORP.
