Connector Terminal Identification
›
C100 To C603
›
C222 (Pickup)
C222 (Pickup)

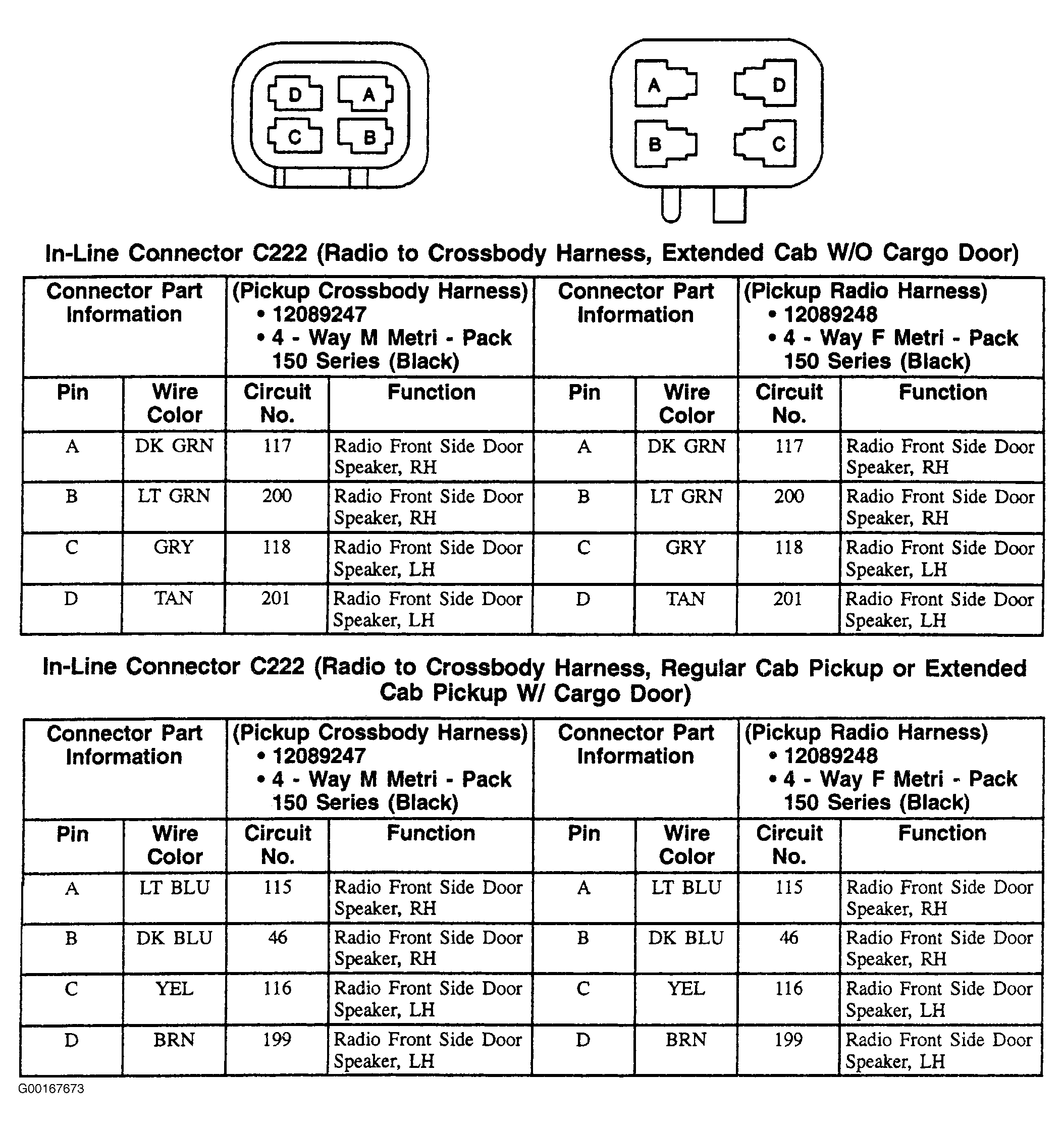

Fig 1: C222 (Pickup) - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
