C222 (Utility)
C222 (Utility)

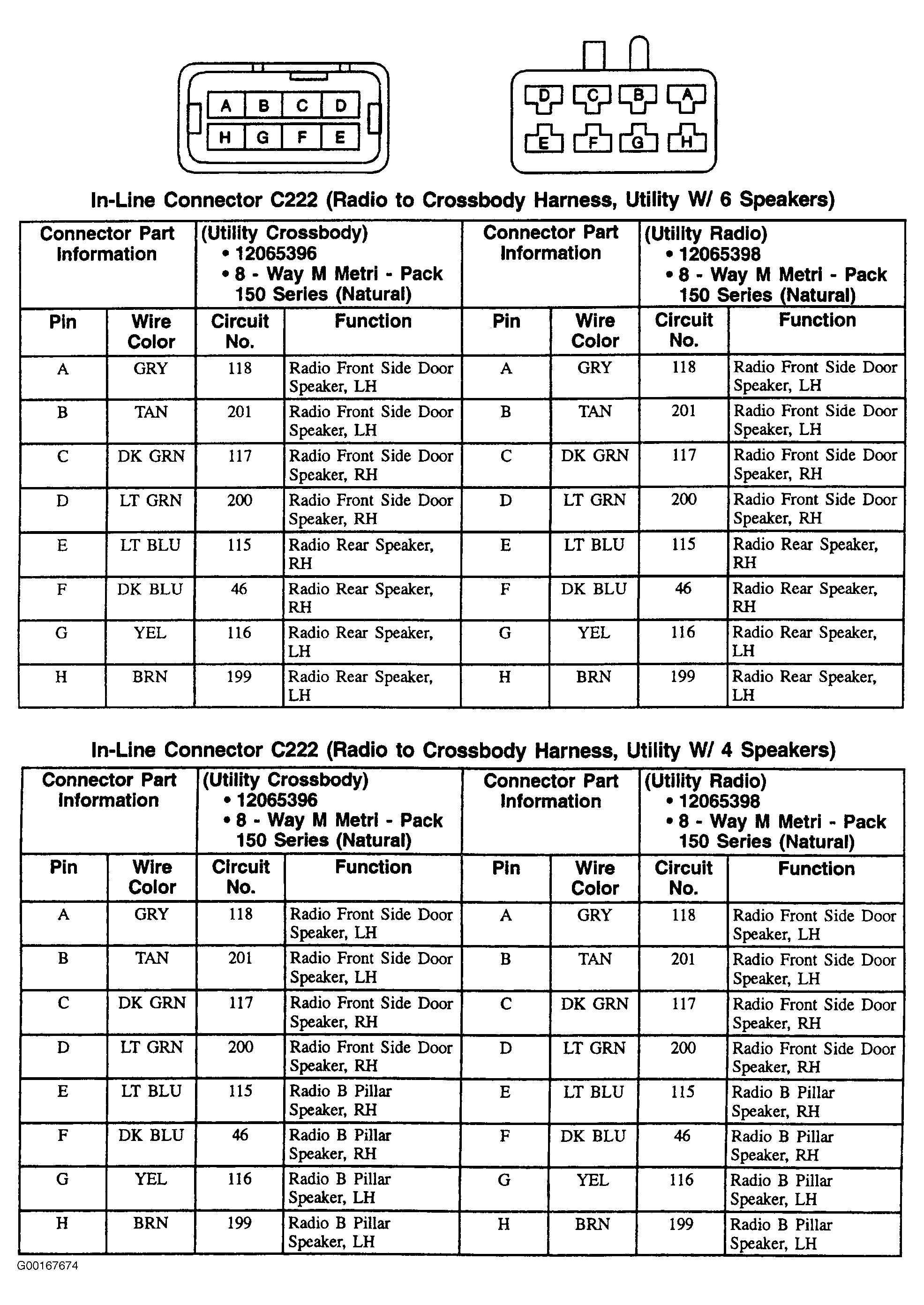

Fig 1: C222 (Utility) - 8-Pin Connector, Natural
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
