Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C390

C100 To C603: C390

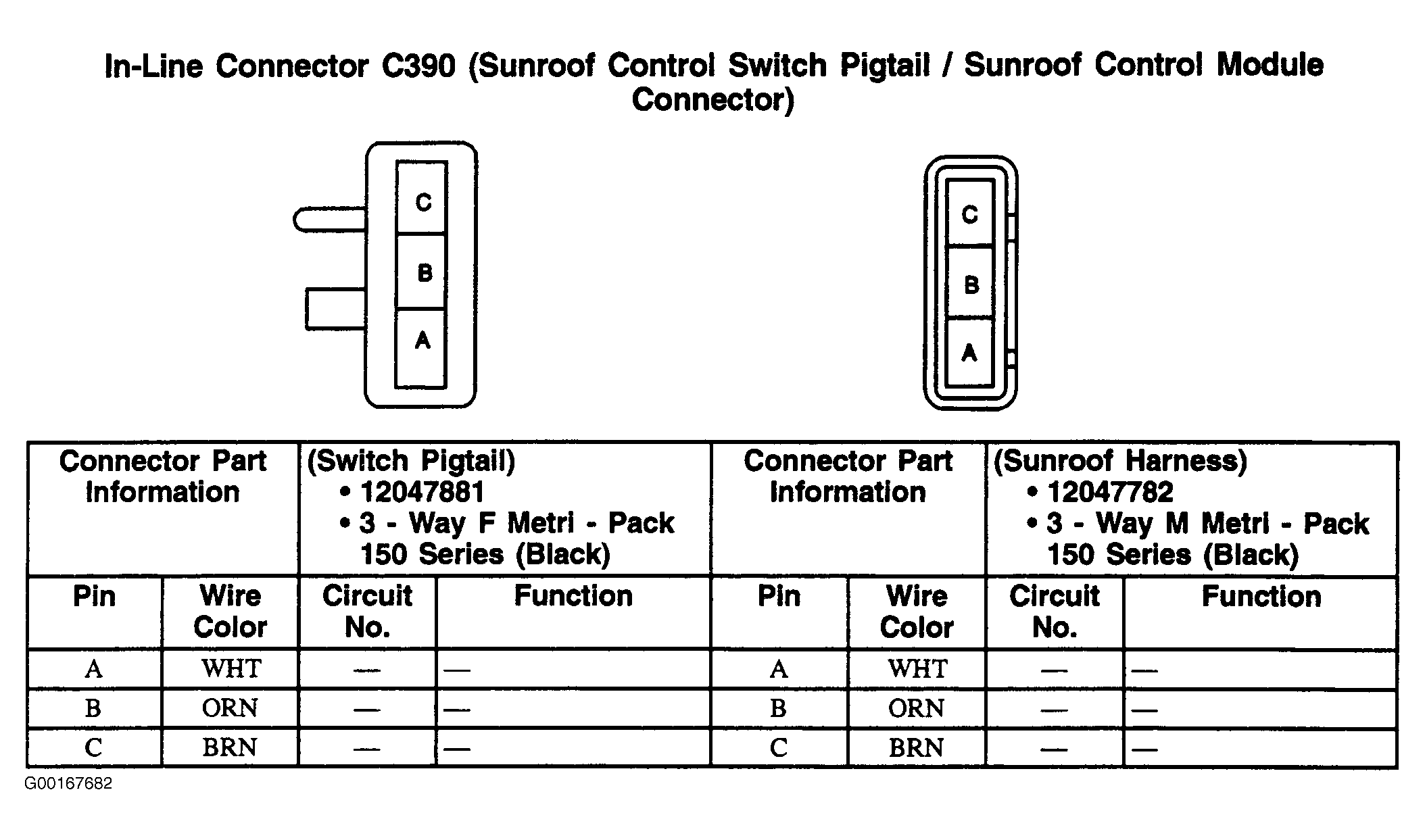

Fig 1: C390 - 3-Pin Connector, Black
G00167682Courtesy of GENERAL MOTORS CORP.
