Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C401

C100 To C603: C401

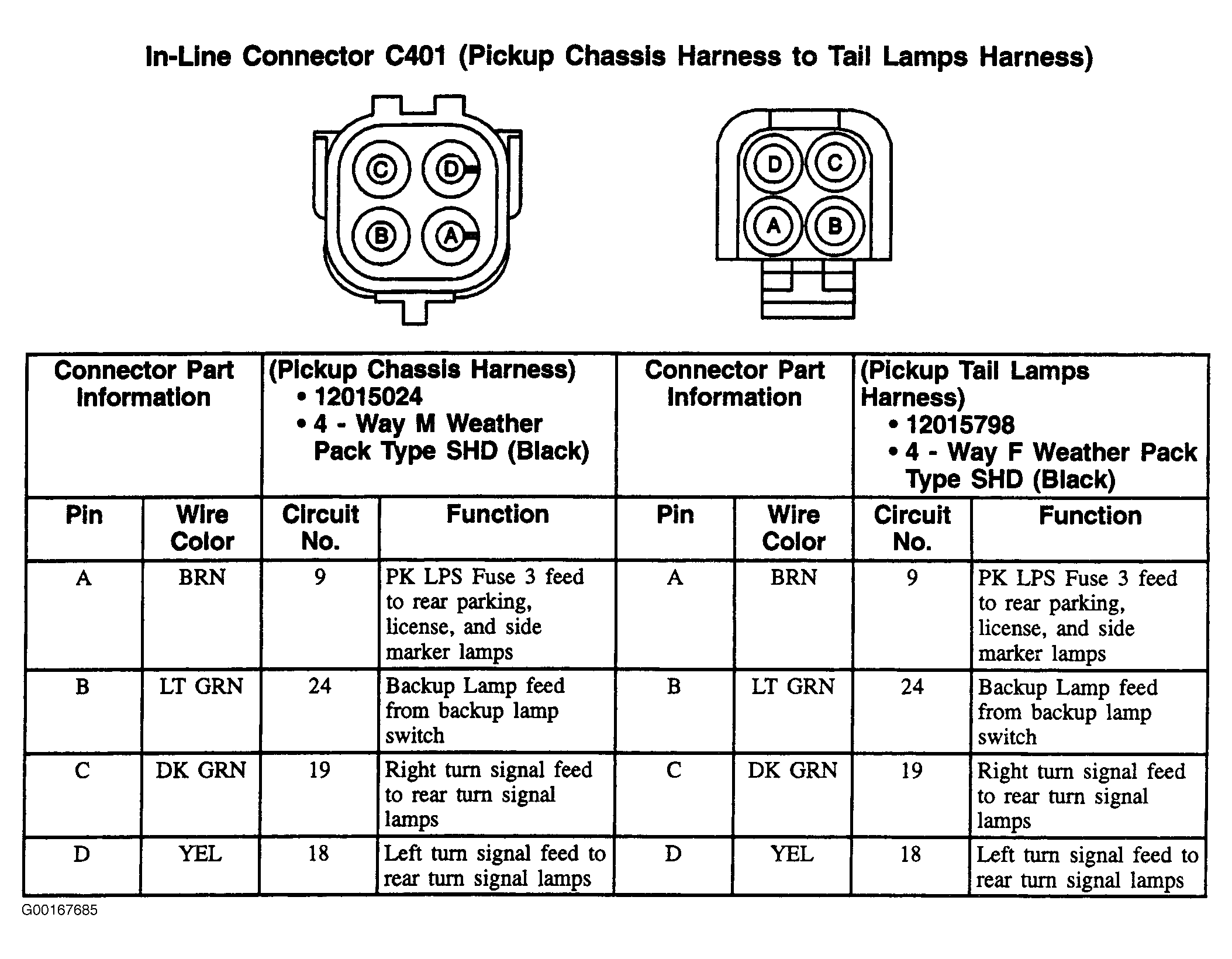

Fig 1: C401 - 4-Pin Connector, Black
G00167685Courtesy of GENERAL MOTORS CORP.
