C404 & C406
C404 & C406

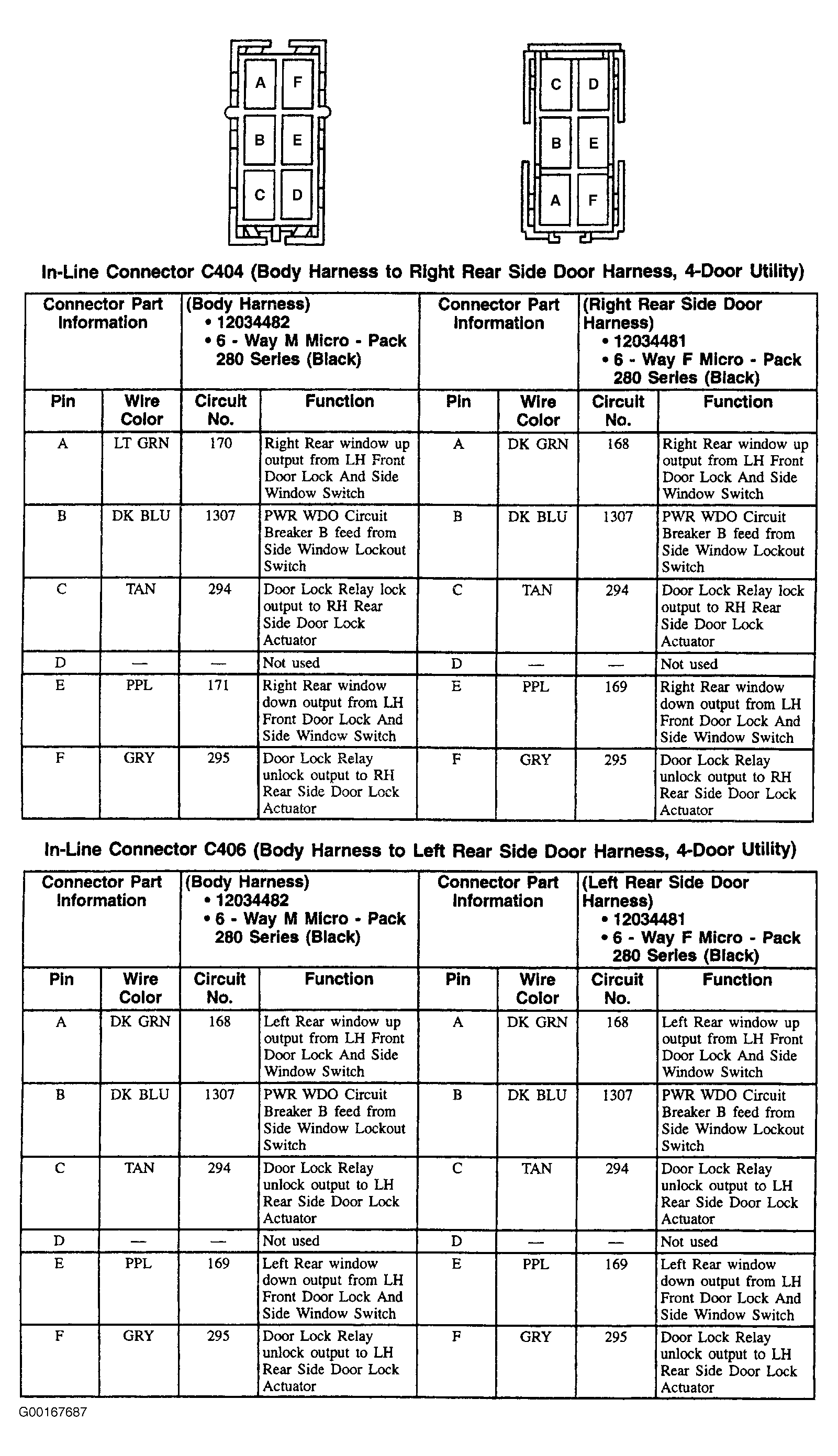

Fig 1: C404 & C406 - 6-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
