C405 & C407
C405 & C407

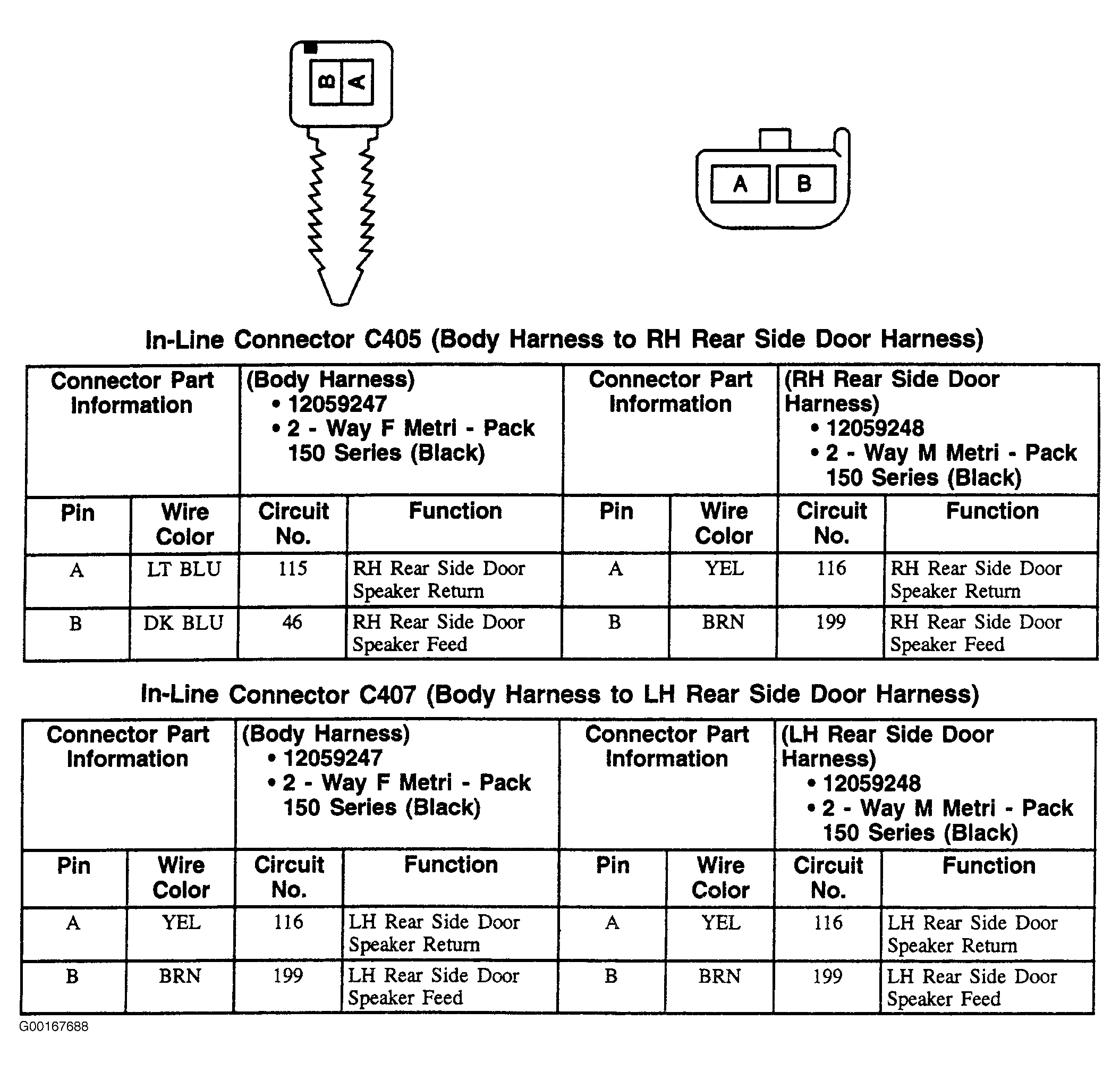

Fig 1: C405 & C407 - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
