Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C415

C100 To C603: C415

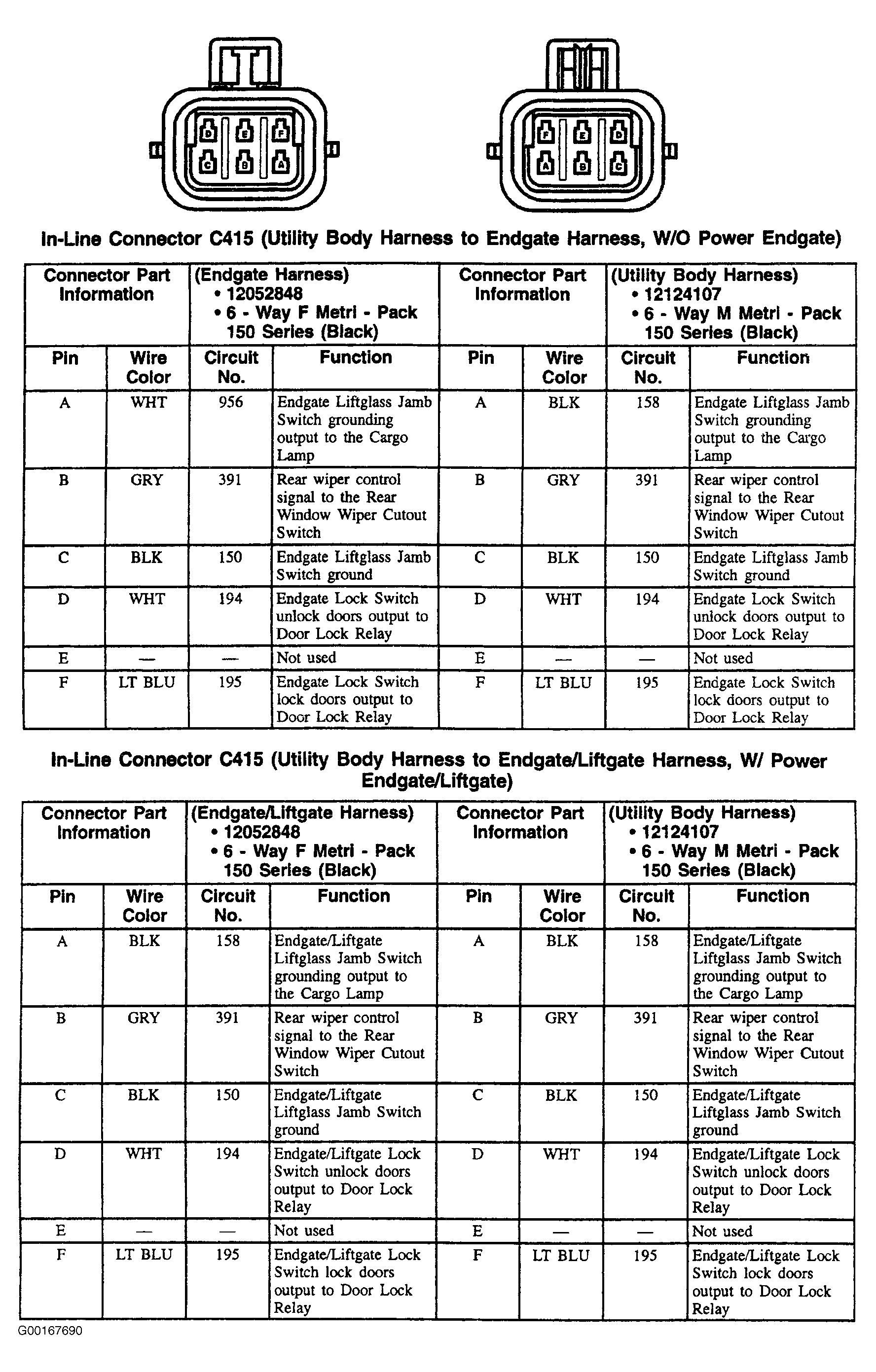

Fig 1: C415 - 6-Pin Connector, Black
G00167690Courtesy of GENERAL MOTORS CORP.
