C426 & C428
C426 & C428

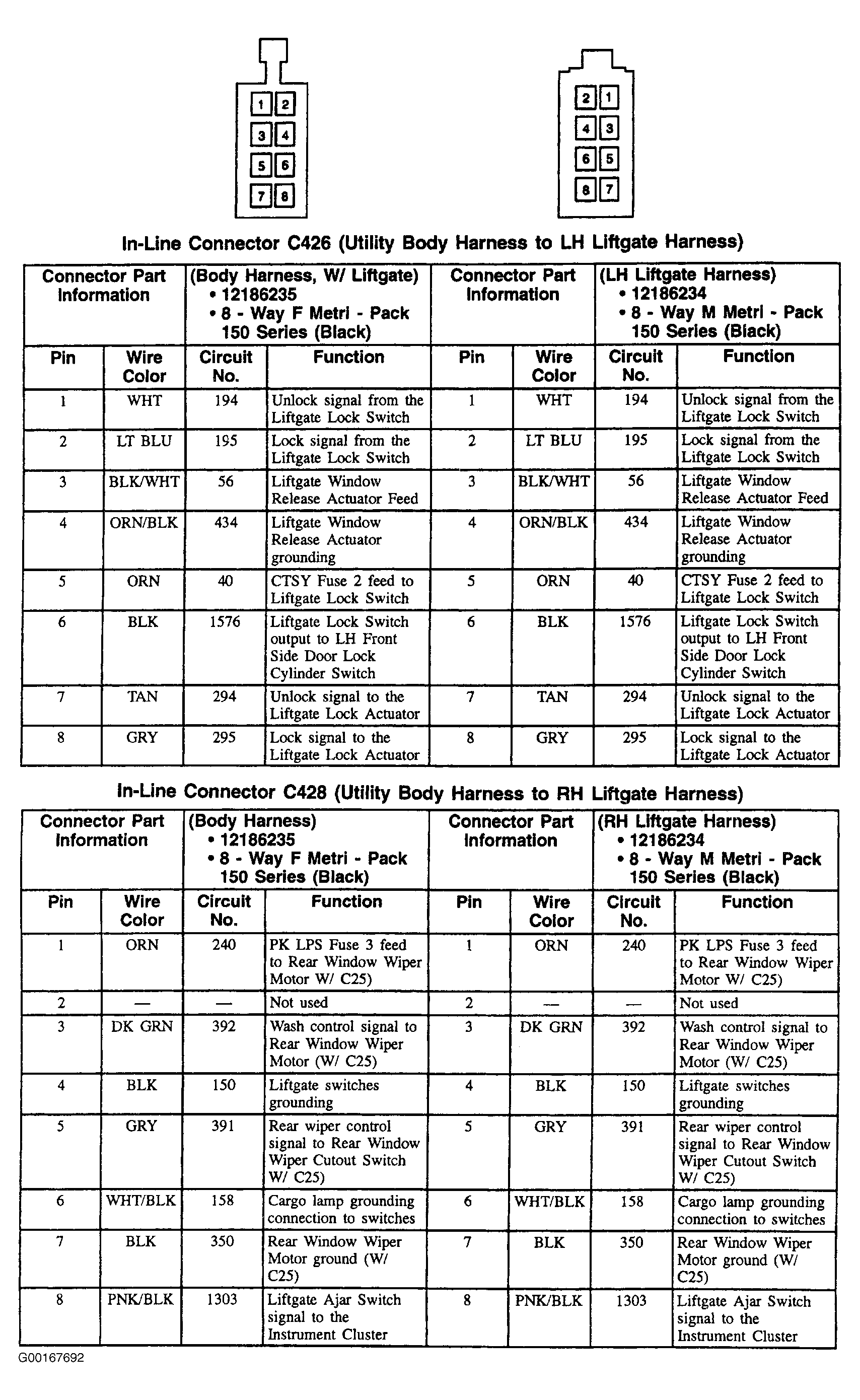

Fig 1: C426 & C428 - 8-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
