C427 & C429
C427 & C429

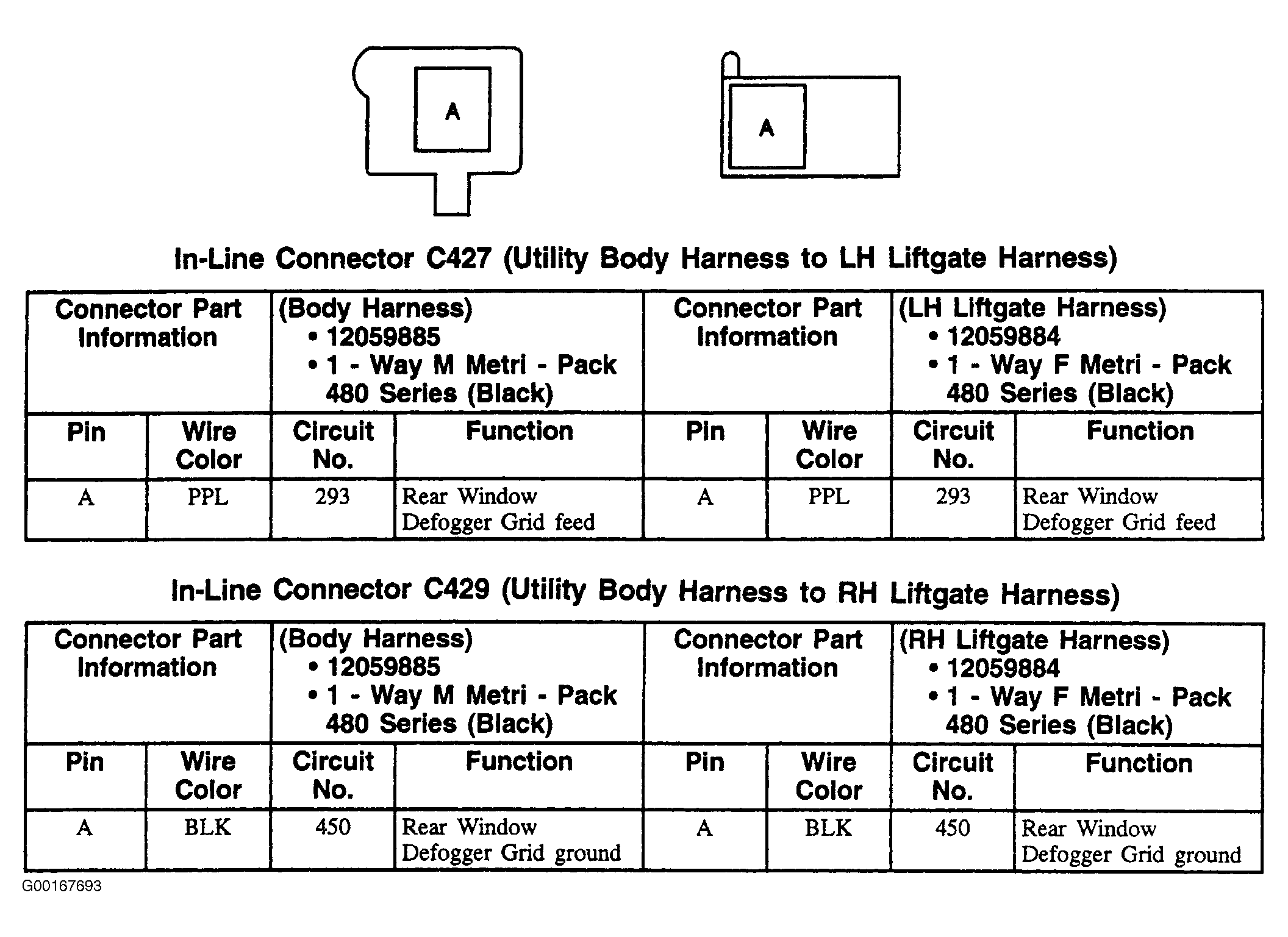

Fig 1: C427 & C429 - 1-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
