Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C430

C100 To C603: C430

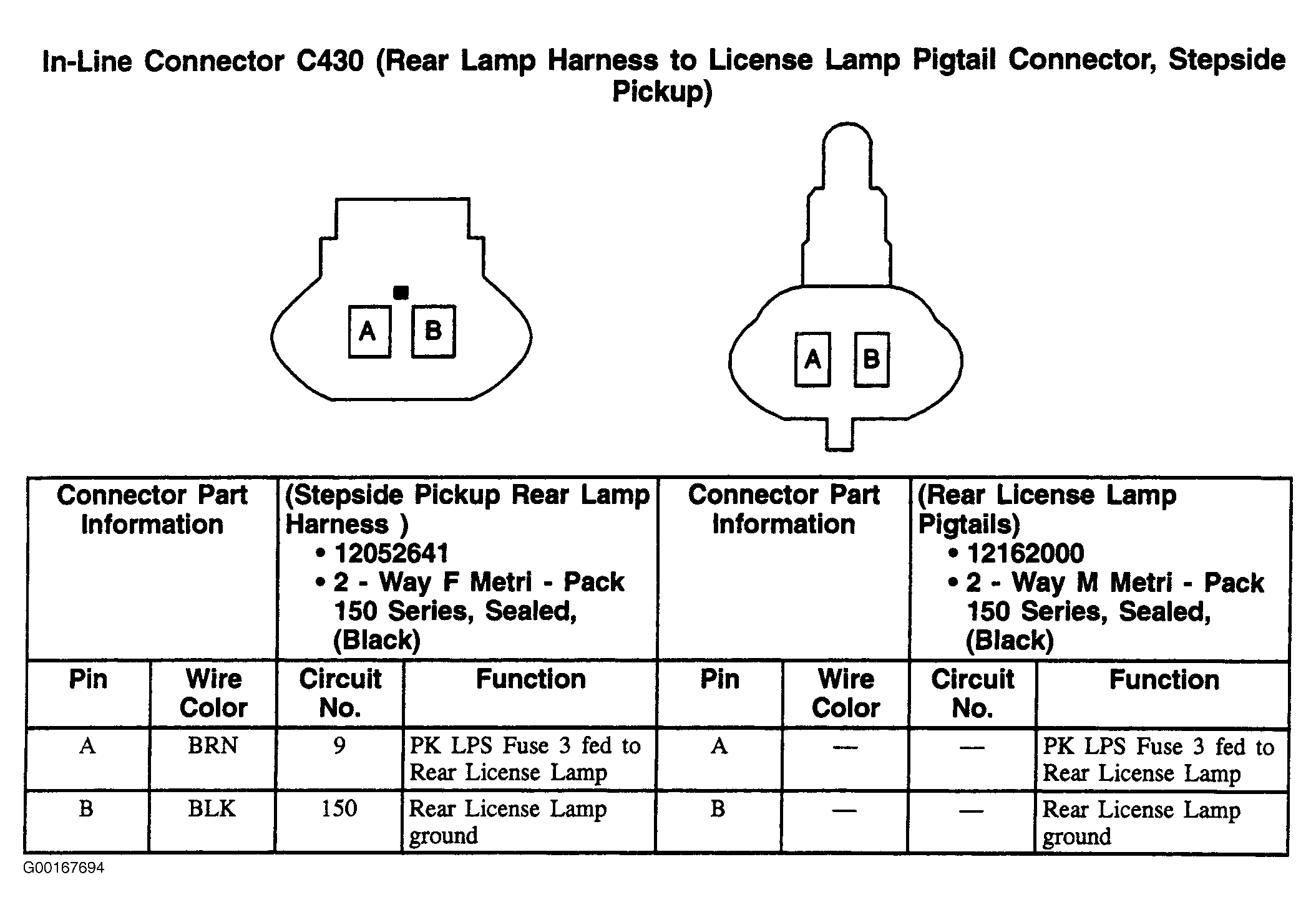

Fig 1: C430 - 2-Pin Connector, Black
G00167694Courtesy of GENERAL MOTORS CORP.
