C432 & C433
C432 & C433

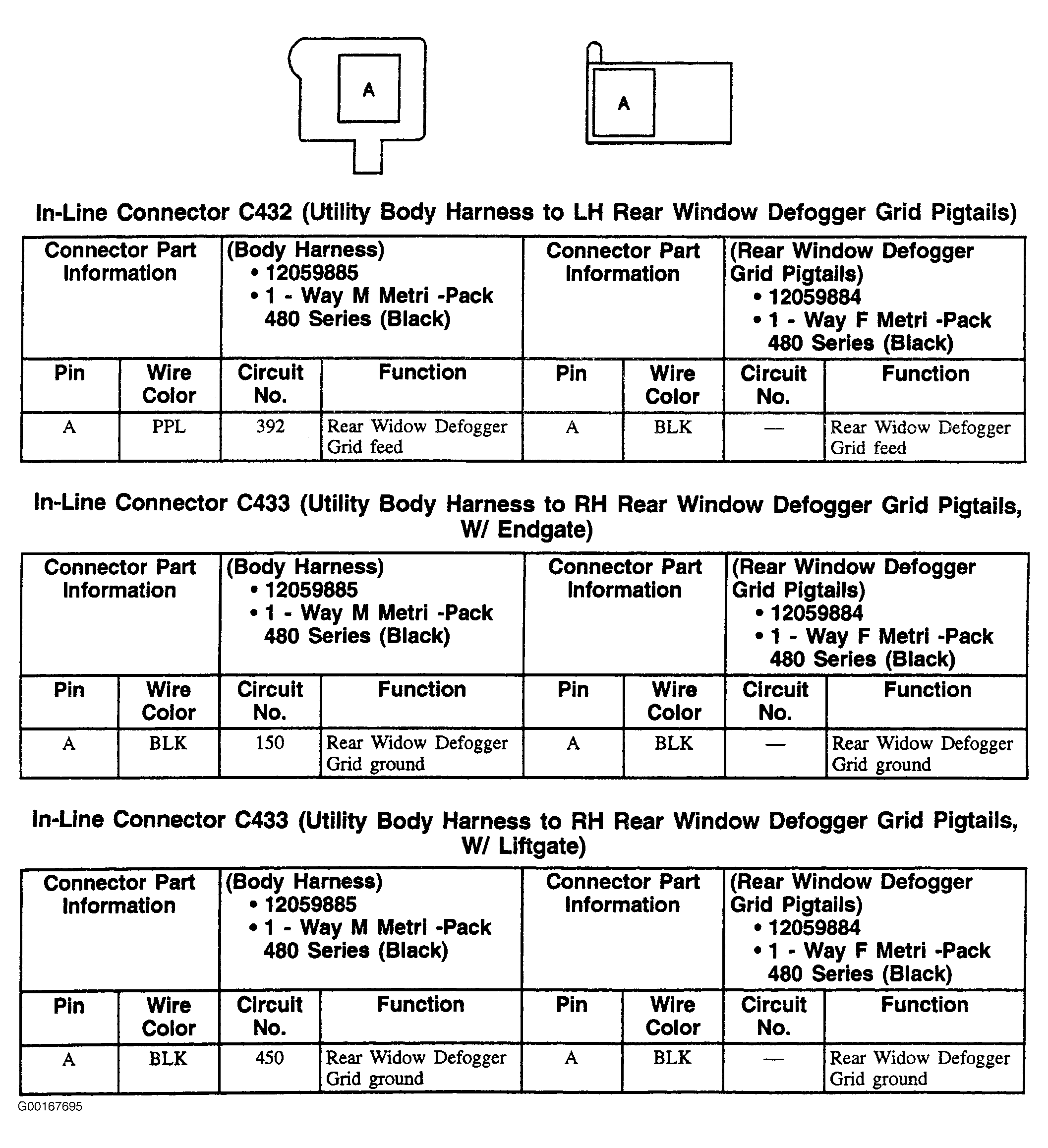

Fig 1: C432 & C433 - 1-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
