Home › GMC › 1997 › Jimmy 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C600

C100 To C603: C600

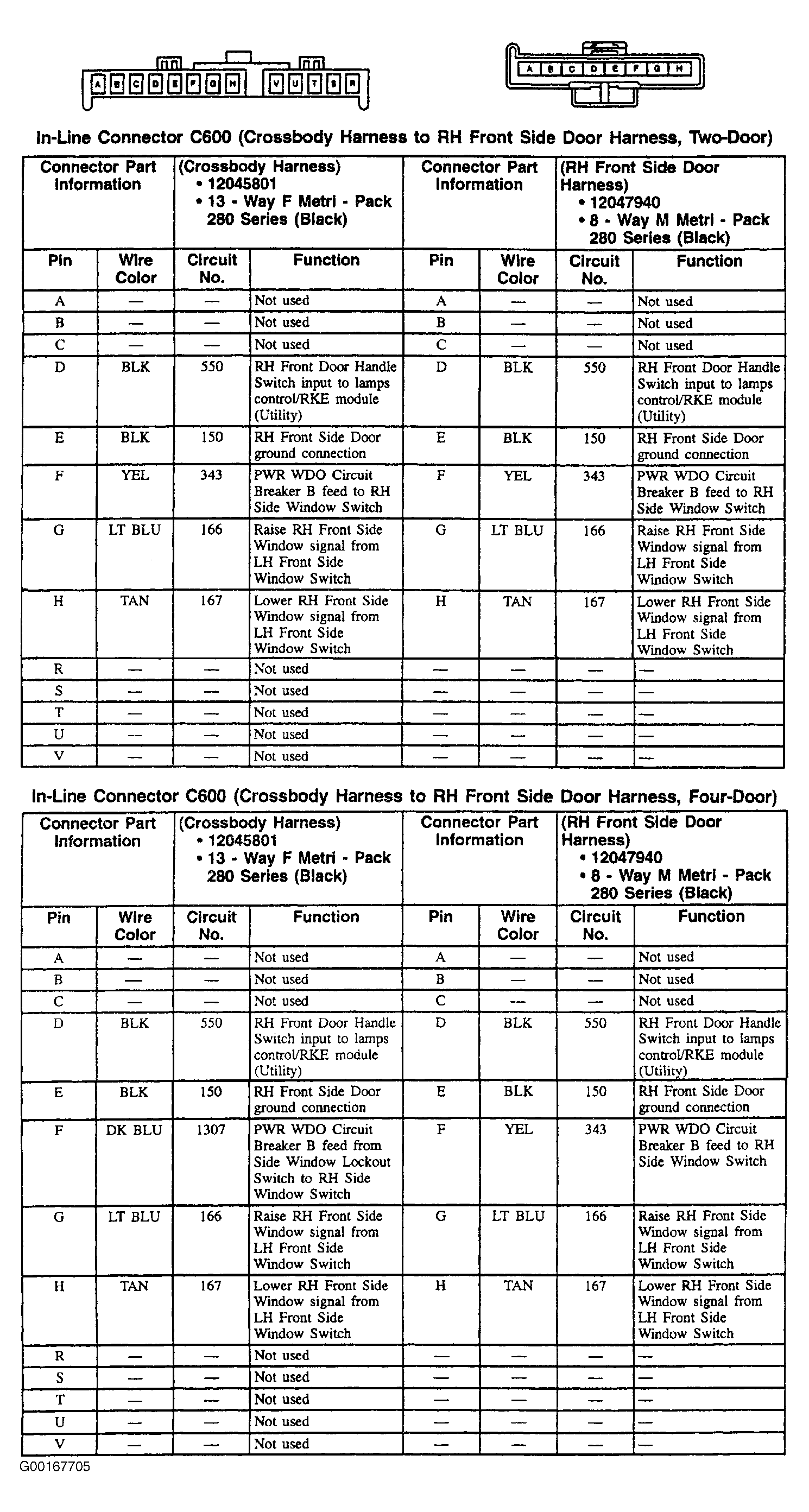

Fig 1: C600 - 13-Pin/8-Pin Connector, Black
G00167705Courtesy of GENERAL MOTORS CORP.
