Camshaft Position Sensor (2.2L)

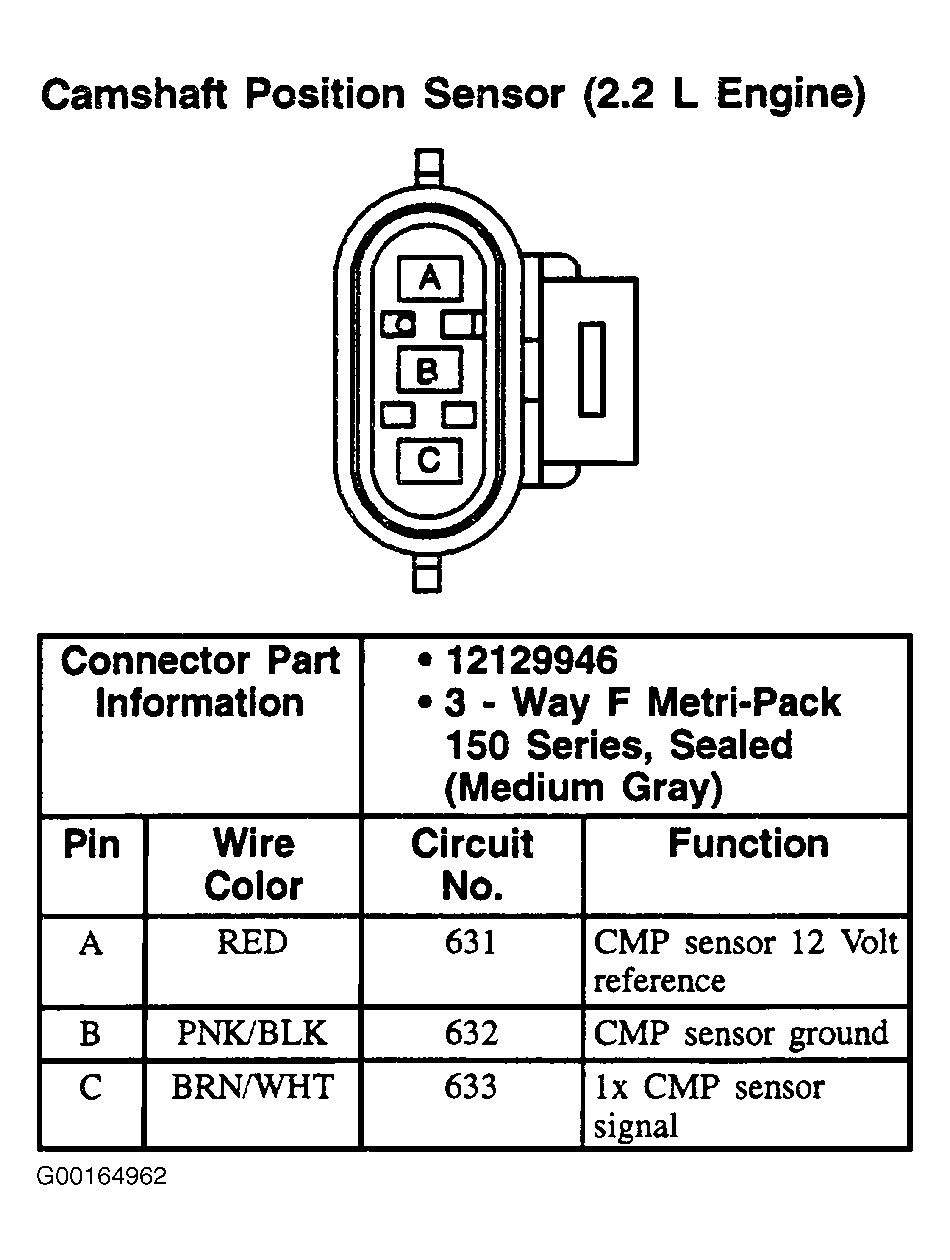

Fig 1: Camshaft Position Sensor (2.2L) - 3-Pin Connector, Medium Gray
G00164962Courtesy of GENERAL MOTORS CORP.
