Connector Terminal Identification
›
Clutch Pedal Position & Cruise Control Shutoff Switch
Clutch Pedal Position & Cruise Control Shutoff Switch

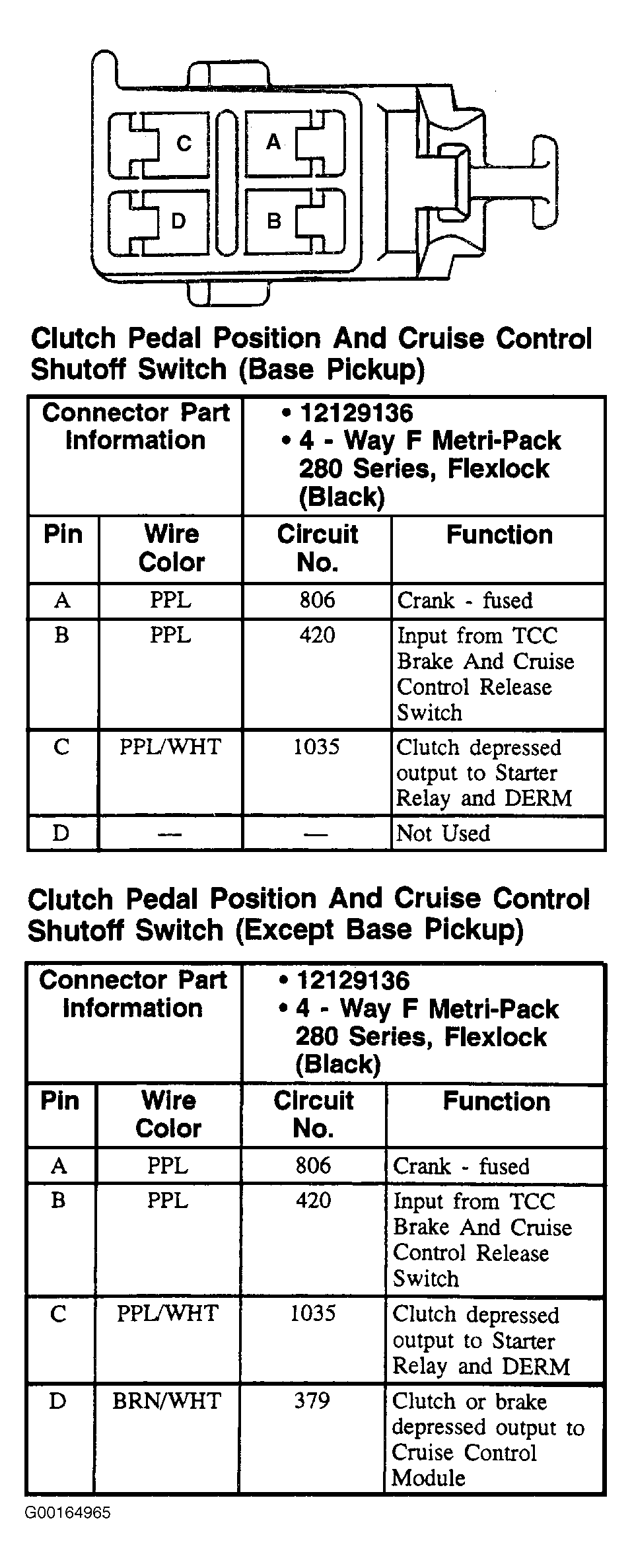

Fig 1: Clutch Pedal Position & Cruise Control Shutoff Switch - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
